PRO Z890-A WIFI
PRO Z890-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI including true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 16+1+1+1 Duet Rail Power System 90A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: dual Thunderbolt™ 4 ports, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
Prekė detaliau
Charakteristikos
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
- Chipset
- Intel Z890
- Garantija
- 36
- RAID
- SATA 0, 1, 5, 10 NVMe 0, 1, 5, 10
- SOCKET
- LGA1851
- Category Code
- MBI
- Frequency speed
- 4800/6400/9200 MHz
- Unit Box Height
- 0.27
- Unit Box Length
- 0.345
- Unit Box Width
- 0.07
- Vendor Homepage
- www.msi.com/Motherboard/PRO-Z890-A-WIFI
- Input/Output connectors (Audio port)
- 2
- Input/Output connectors (HDMI)
- 1
- Integrated audio
- Realtek ALC1220P
- Integrated LAN
- 5 Gigabit
- Integrated video
- Depending on CPU
- Expansion slots (M.2)
- 4
- Input/Output connectors (RJ45)
- 1
- Interface (Bluetooth)
- Yes
- Input/Output connectors (Optical S/PDIF)
- 1
- Input/Output connectors (USB 3.2)
- 7
- Interface (WiFi)
- Yes
- Expansion slots (PCI-Express 4.0 4x)
- 2
- Expansion slots (PCI-Express 5.0 16x)
- 1
- Input/Output connectors (USB-C w/Thunderbolt)
- 2
- Interface (USB 3.2)
- Yes
- MODEL
- PRO Z890-A WIFI
- Interface (USB-C)
- Yes
- Interface (Thunderbolt)
- Yes
- Input/Output connectors (USB-C)
- 1
- Units per Shipping Box
- 5
- Product Net Weight
- 1 kg
- Unit Calculated Weight
- 2.2 kg
- Unit Calculated Volume
- 0.008122 cubm
- CnCode
- 84733020
Greitas palyginimas
Prekė |
Mainboard|GIGABYTE|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 2x|1xPCI-Express 4.0 4x |1xPCI-Express 5.0 16
|
|

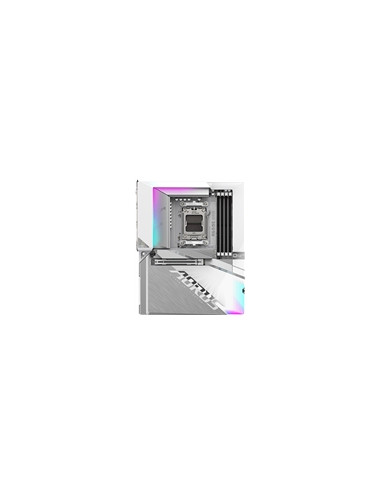

Mainboard|GIGABYTE|AMD B650|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xRJ45
|
