Asrock

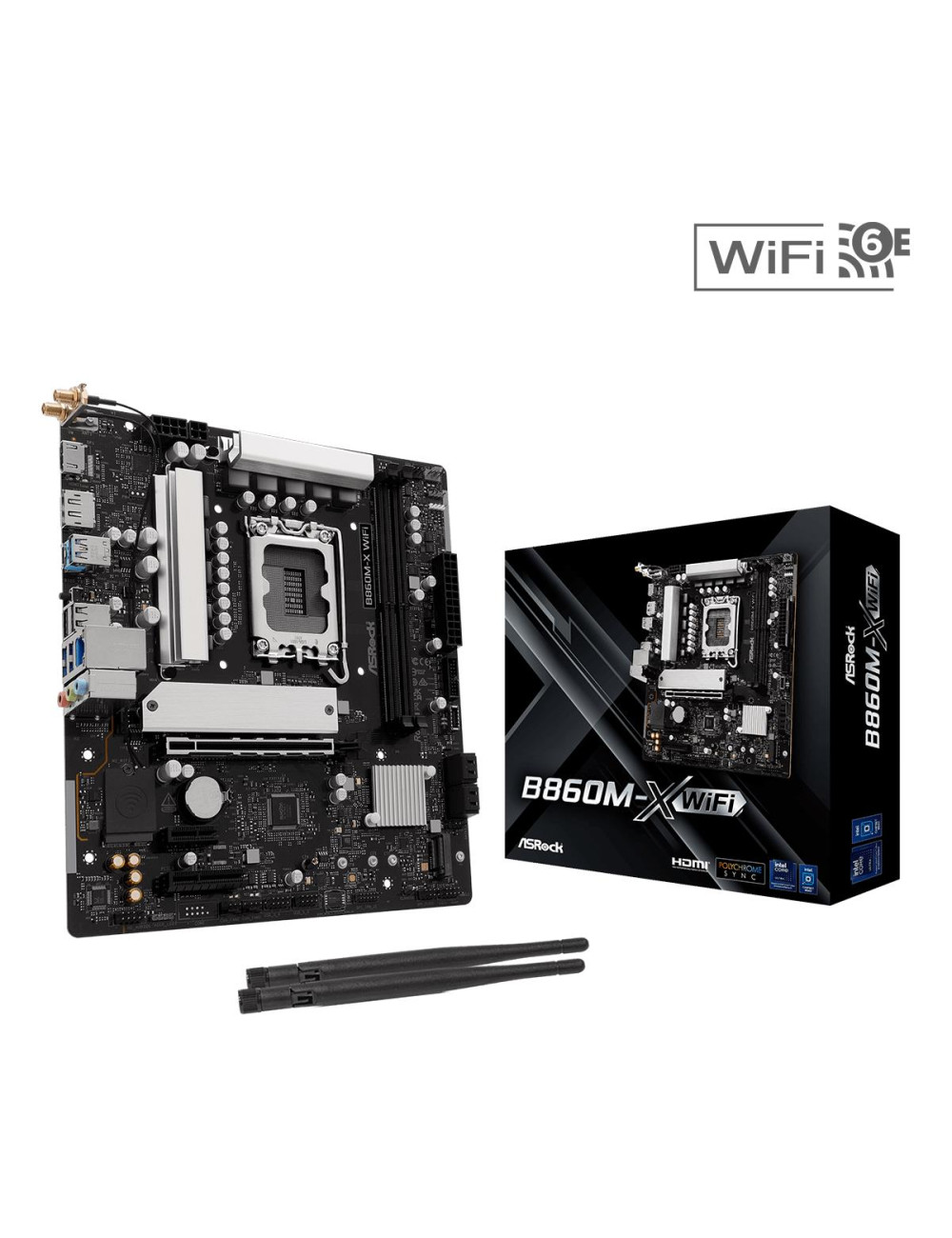

Mainboard|ASROCK|Intel B660|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|B860M-X_WIFI

130,98 €

Su mokesčiais

X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
7+1+1+1+1 Power Phase
2 x DDR5 DIMMs
Supports Dual Channel, up to 9066+ (OC)
1 PCIe 4.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2x2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
5 USB 3.2 Gen1 (3 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN
Supports BIOS Flashback

Prekė detaliau

Kodas B860M-X_WIFI

Yra sandėlyje 18 Prekės

Charakteristikos

Form factor: Micro-ATX
Memory type: DDR5
Memory slots: 2
Chipset: Intel B660
Garantija: 36
RAID: SATA 0, 1, 5, 10
SOCKET: LGA1851
Category Code: MBI
Frequency speed: 9066 MHz
Unit Box Height: 0.06
Unit Box Length: 0.3
Unit Box Width: 0.265
Vendor Homepage: www.asrock.com/MB/Intel/B860M-X%20WiFi/index.asp Specification
Interface (SATA 3.0): Yes
Interface (SATA): Yes
Input/Output connectors (HDMI): 1
Integrated audio: Realtek ALC897
Integrated LAN: 2.5 Gigabit
Integrated video: Depending on CPU
Expansion slots (M.2): 1
Input/Output connectors (RJ45): 1
TPM: Header
Input/Output connectors (USB 2.0): 2
Interface (USB 2.0): Yes
Input/Output connectors (DisplayPort): 1
Expansion slots (PCI-Express 4.0 16x): 1
Input/Output connectors (USB 3.2): 3
Interface (WiFi): Yes
Expansion slots (PCI-Express 4.0 4x): 1
Expansion slots (PCI-Express 4.0 1x): 1
Interface (USB 3.2): Yes
MODEL: B860M-X WIFI
Interface (USB-C): Yes
Input/Output connectors (USB-C): 1
Units per Shipping Box: 10
Product Net Weight: 0.8 kg
Unit Calculated Weight: 1.22 kg
Unit Calculated Volume: 0.00553 cubm
CnCode: 84733020
