- The 2560 × 1440 resolution produces clearer and more vivid images
- IPS panel for wide viewing angles with 3-sided frameless design
- 178° (H) / 178° (V)extra-wide viewing angle for overall viewing performance
- 5 ms fast response time with no image blurring or ghosting
- Low blue light technology can support a comfortable viewing experience
Prekė detaliau
Charakteristikos
- Garantija
- 36
- Category Code
- LC3
- Vendor Homepage
- https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM27-C301B V1
- Product Net Weight
- 4.8 kg
- Unit Calculated Weight
- 6.3 kg
- Unit Calculated Volume
- 0.04 cubm
- CnCode
- 85285210
- Energy Efficiency (EPREL Registration Number)
- 2059242
- Energy Efficiency (EPREL Version Number)
- 2
- Energy Efficiency (Data Sheet (Link))
- https://eprel.ec.europa.eu/api/product/2059242/fiches?language EN
- Energy Efficiency (Energy efficiency class)
- F
- Summary

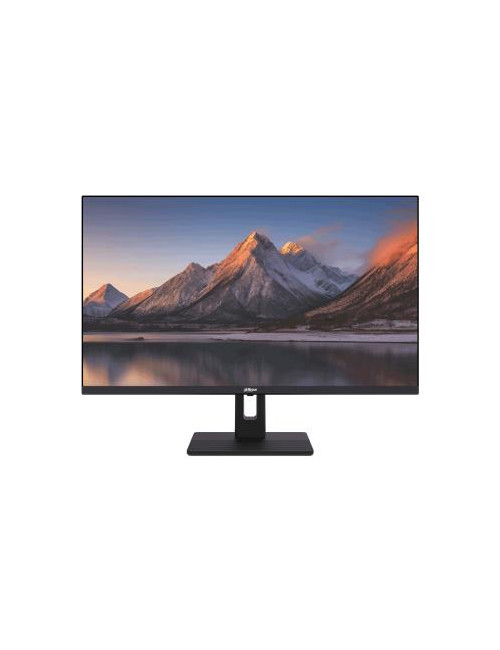

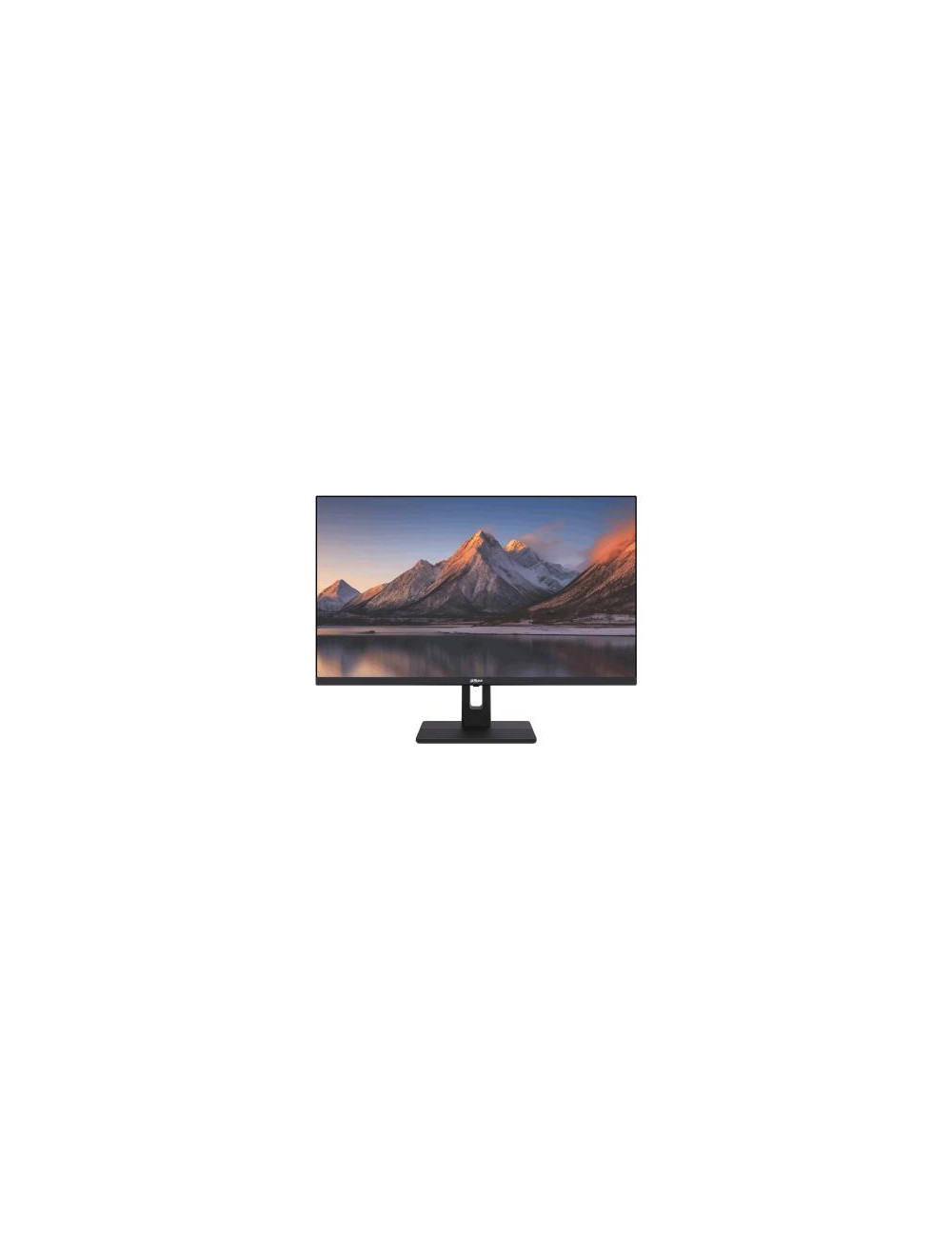

- Dahua Technology LM27-C301B. Display diagonal: 68.6 cm (27"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Native aspect ratio: 16:9, Viewing angle, horizontal: 178 , Viewing angle, vertical: 178 . VESA mounting. Prod
- Packaging data (Package width)
- 694 mm
- Packaging data (Package depth)
- 126 mm
- Packaging data (Package height)
- 458 mm
- Packaging data (Package weight)
- 6300 g
- Packaging content (Quick start guide)
- Yes
- Packaging content (Cables included)
- HDMI
- Display (Display diagonal)
- 27 "
- Display (Display diagonal (metric))
- 69 cm
- Display (Display resolution)
- 2560 x 1440 pixels
- Display (Display technology)
- LED
- Display (HD type)
- Quad HD
- Display (LED backlight)
- Yes
- Display (Native aspect ratio)
- 16:9
- Display (Screen shape)
- Flat
- Display (Viewing angle, horizontal)
- 178
- Display (Viewing angle, vertical)
- 178
- Ports & interfaces (HDMI ports quantity)
- 1
- Ports & interfaces (HDMI version)
- 1.4
- Network (Bluetooth)
- No
- Network (Wi-Fi)
- No
- Design (Product colour)
- Black
- Power (Energy consumption (SDR) per 1000 hours)
- 25 kWh
- Power (Energy efficiency class (HDR))
- Not available
- Power (Energy efficiency class (SDR))
- F
- Power (Energy efficiency scale)
- A to G
- Power (Power consumption (standby))
- 0.5 W
- Weight & dimensions (Depth (with stand))
- 198 mm
- Weight & dimensions (Depth (without stand))
- 51.1 mm
- Weight & dimensions (Height (with stand))
- 461.3 mm
- Weight & dimensions (Height (without stand))
- 363 mm
- Weight & dimensions (Width (with stand))
- 614.1 mm
- Weight & dimensions (Width (without stand))
- 614.1 mm
- Weight & dimensions (Weight (without stand))
- 4800 g
- Design (Frameless design)
- Yes
- Power (Power consumption (max))
- 30 W
- Power (Power consumption (typical))
- 30 W
- Performance (AMD FreeSync)
- No
- Display (Supported graphics resolutions)
- 2560 x 1440
- Design (Feet colour)
- Black
- Power (Power consumption (off))
- 0.3 W
- Performance (NVIDIA G-SYNC)
- No
- Display (Colour gamut standard)
- NTSC
- Display (Contrast ratio (typical))
- 1200:1
- Display (Display brightness (typical))
- 300 cd/m
- Display (Maximum refresh rate)
- 100 Hz
- Display (Panel type)
- IPS
- Display (Response time (fast))
- 5 ms
- Display (Touchscreen)
- No
- Performance (Low Blue Light technology)
- Yes
- Multimedia (Built-in camera)
- No
- Multimedia (Built-in speaker(s))
- No
- Design (Market positioning)
- office
- Ports & interfaces (Built-in USB hub)
- No
- Ports & interfaces (DisplayPorts quantity)
- 1
- Ports & interfaces (HDMI)
- Yes
- Ports & interfaces (Headphone out)
- Yes
- Ergonomics (Height adjustment)
- No
- Ergonomics (Panel mounting interface)
- 75 x 75 mm
- Ergonomics (Tilt adjustment)
- Yes
- Ergonomics (Tilt angle range)
- -5 - 15
- Ergonomics (VESA mounting)
- Yes
- Ergonomics (Wall mountable)
- Yes
- Design (Detachable stand)
- Yes
- Ports & interfaces (Headphone connectivity)
- 3.5 mm
- Power (Power supply type)
- External
- Packaging content (Power adapter included)
- Yes
- Packaging content (Stand included)
- Yes
- Display (Colour depth)
- 8 bit
- Design (Illuminated stand)
- No
- Display (Supported video modes)
- 1440p
- Display (Backlight type)
- Edge LED
- Display (Haze rate)
- 25 %
- Display (NTSC coverage (typical))
- 85 %
- Design (Front bezel colour)
- Black
- Ergonomics (Plug and Play)
- Yes
- Power (AC adapter output voltage)
- 12 V
- Operational conditions (Operating relative humidity (H-H))
- 10 - 90 %
- Operational conditions (Operating temperature (T-T))
- 0 - 40 C
- Operational conditions (Storage relative humidity (H-H))
- 5 - 90 %
- Operational conditions (Storage temperature (T-T))
- -20 - 60 C
- Weight & dimensions (Bezel width (bottom))
- 16.1 mm
- Weight & dimensions (Bezel width (side))
- 1.9 mm
- Weight & dimensions (Bezel width (top))
- 1.9 mm
- Other features (Compliance certificates)
- CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
- Other features (E-manual)
- Yes
- Power (Input current)
- 3 A
- Ports & interfaces (DisplayPort out version)
- 1.2
- Other features (Automatic brightness control)
- No
