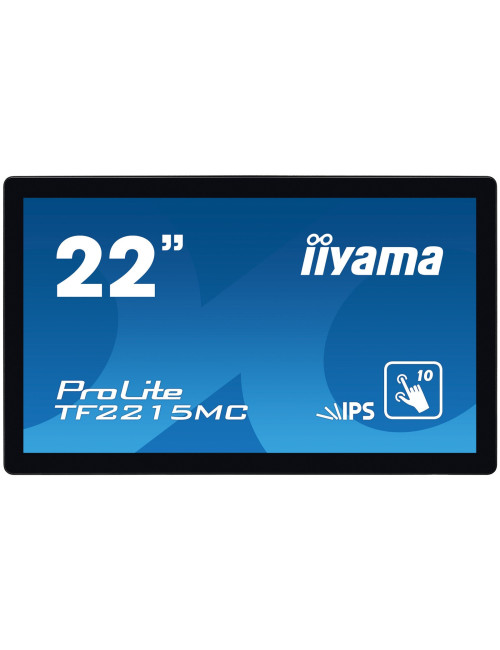

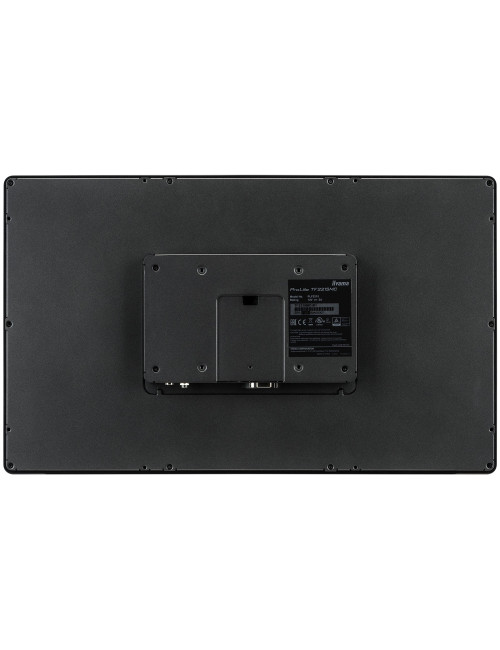

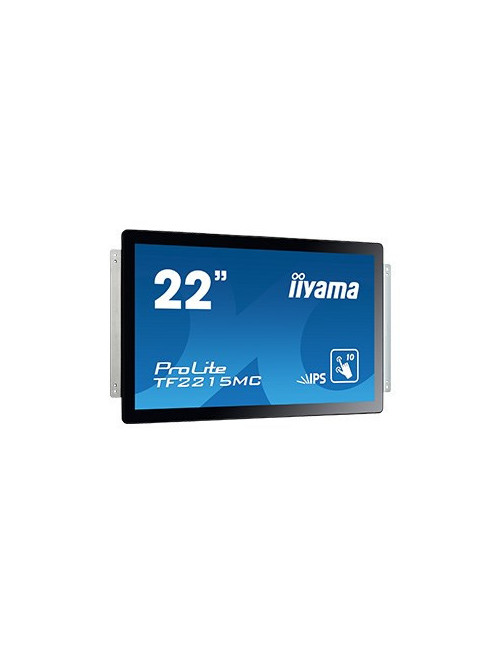

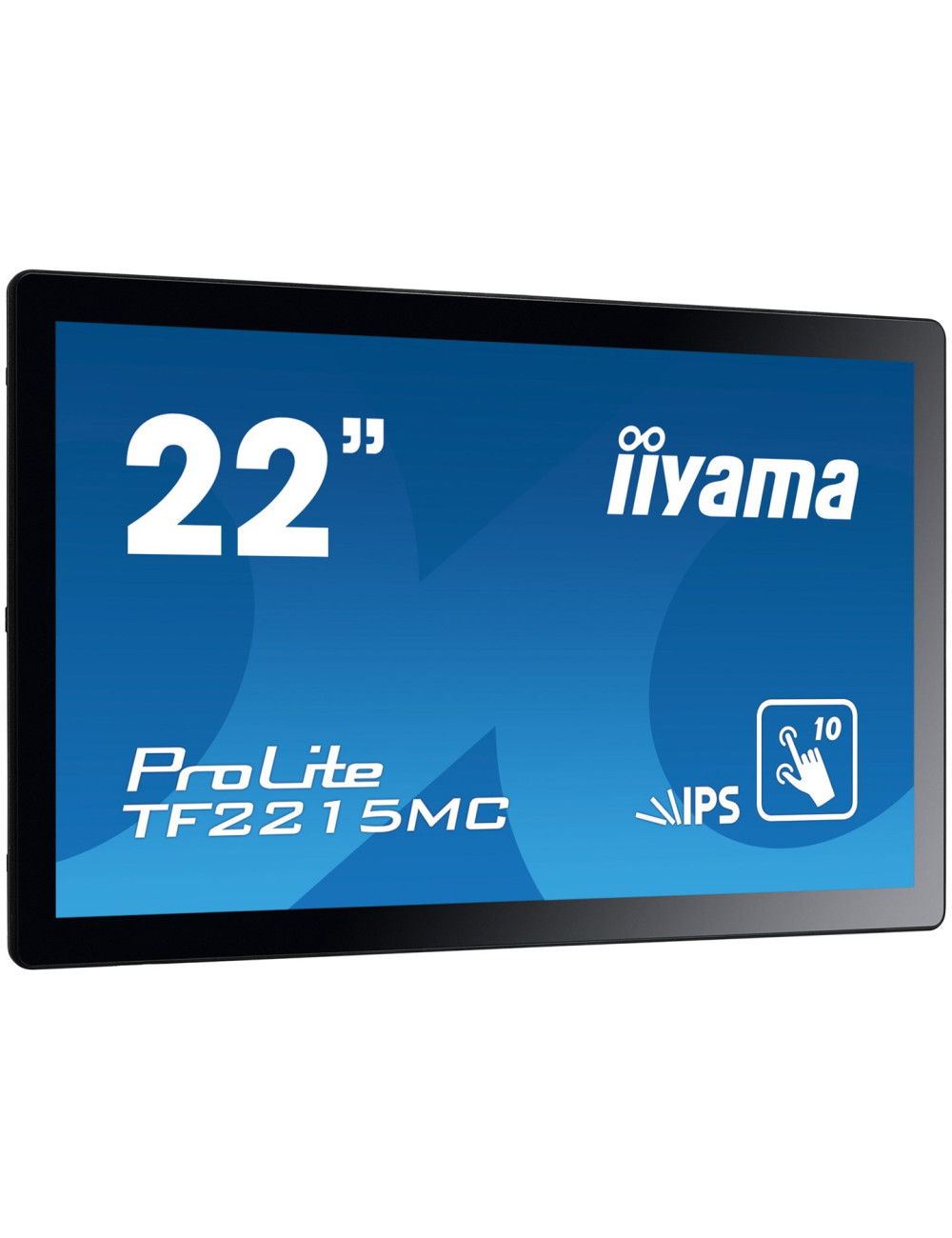

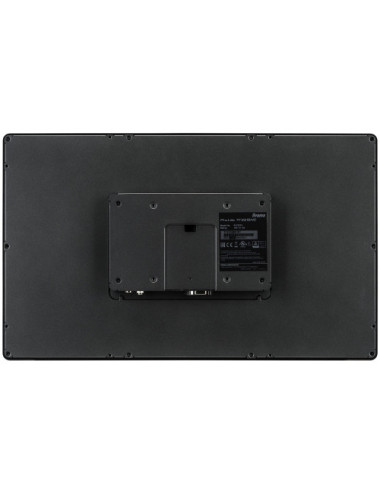

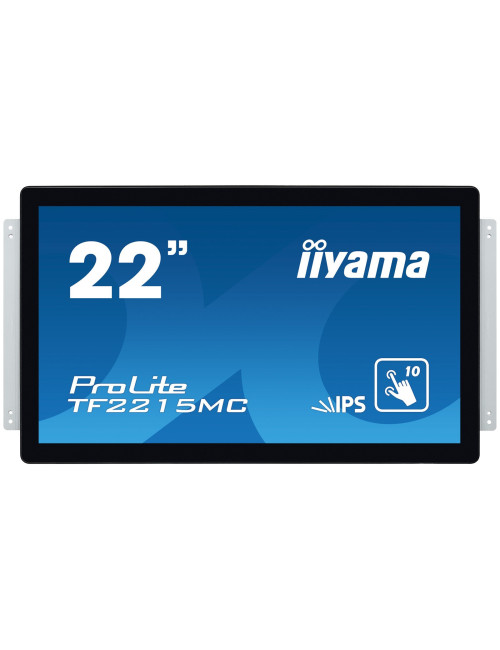

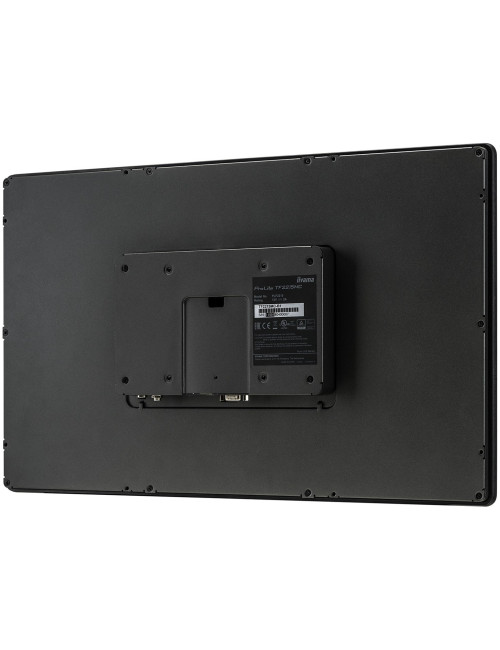

Prekė detaliau
Charakteristikos
- Plug and Play
- Yes
- Width
- 520 mm
- Height
- 315 mm
- Depth
- 42.5 mm
- Weight
- 4.4 kg

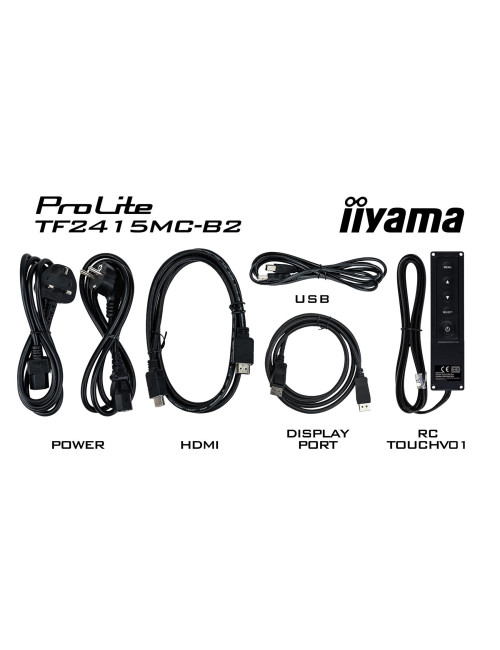

- Cables included
- DisplayPort
- Storage relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
- Built-in microphone
- No
- AC adapter included
- Yes
- Power supply type
- External
- Quick start guide
- Yes
- Control panel
- Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Display technology
- LED
- Display diagonal
- 54.6 cm (21.5")
- Touch technology
- Multi-touch
- Built-in camera
- No
- VGA (D-Sub) ports quantity
- 1
- Power consumption (typical)
- 20.8 W
- HDCP
- Yes
- Display brightness
- 315 cd/m²
- Response time
- 14 ms
- HD type
- Full HD
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 16:9
- VESA mounting
- Yes
- Horizontal scan range
- 31.4 - 82 kHz
- Vertical scan range
- 56 - 75 Hz
- Viewable size, horizontal
- 47.6 cm
- Viewable size, vertical
- 26.8 cm
- NVIDIA G-SYNC
- No
- On Screen Display (OSD) languages
- English
- Power consumption (standby)
- 1.05 W
- Width (with stand)
- 520 mm
- Depth (with stand)
- 42.5 mm
- Height (with stand)
- 315 mm
- Placement supported
- Horizontal/Vertical
- Panel type
- IPS
- Aspect ratio
- 16:9
- HDMI
- Yes
- Touchscreen
- Yes
- Display number of colours
- 16.78 million colours
- Power consumption (off)
- 0.32 W
- Pixel pitch
- 0.24795 x 0.24795 mm
- Display diagonal (metric)
- 54.6 cm
- Touchscreen technology
- Projected capacitive system
- FULL HD
- YES
- Headphone outputs
- 1
- Brightness
- 315 cd/m²
- International Protection (IP) code
- IP65
- On Screen Display (OSD)
- Yes
- Separate H/V sync
- Yes
- Wall mountable
- Yes
- Screen shape
- Flat
- Product colour
- Black
- Energy consumption (SDR) per 1000 hours
- 19 kWh
- Energy efficiency class (SDR)
- F
- Width (without stand)
- 520 mm
- Weight (with stand)
- 4.4 kg
- Height (without stand)
- 315 mm
- Depth (without stand)
- 42.5 mm
- AMD FreeSync
- No
- Display resolution
- 1920 x 1080 pixels
- Display brightness (typical)
- 350 cd/m²
- Surface hardness
- 7H
- Panel mounting interface
- 100 x 100 mm
- Harmonized System (HS) code
- 85285210
- Sustainability certificates
- ErP
- Weight (without stand)
- 4.4 kg
- Energy efficiency scale
- A to G
- Number of OSD languages
- 6
- Front bezel colour
- Black
- Active display area (W x H)
- 476.064 x 267.786 mm
- AC adapter output voltage
- 12 V
- Touchscreen type
- Multi-user
- OmniTapps Multitouch compatibility
- No
- Display viewable area (HxV)
- 476.064 x 267.786 mm
- Number of simultaneous touchpoints
- 10
- USB Touch port
- Yes
- Touch method
- stylus, finger, glove (latex)
- Compliance certificates
- CB
