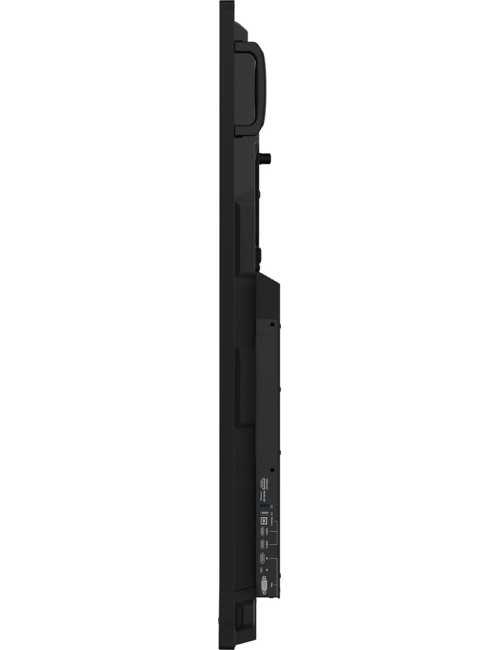

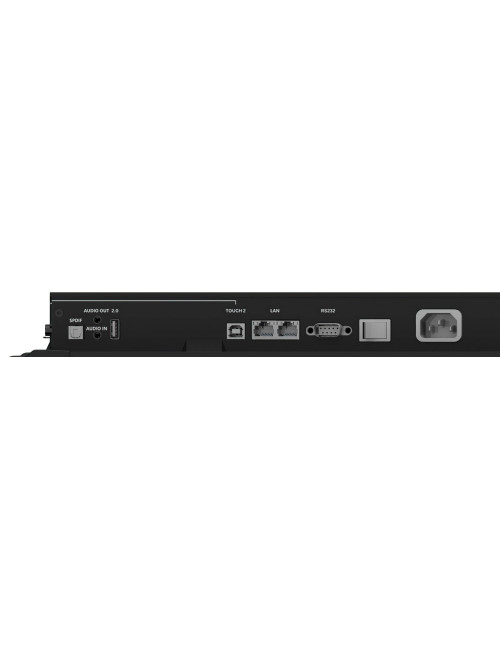

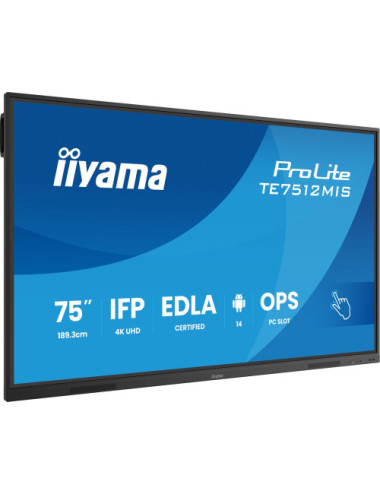

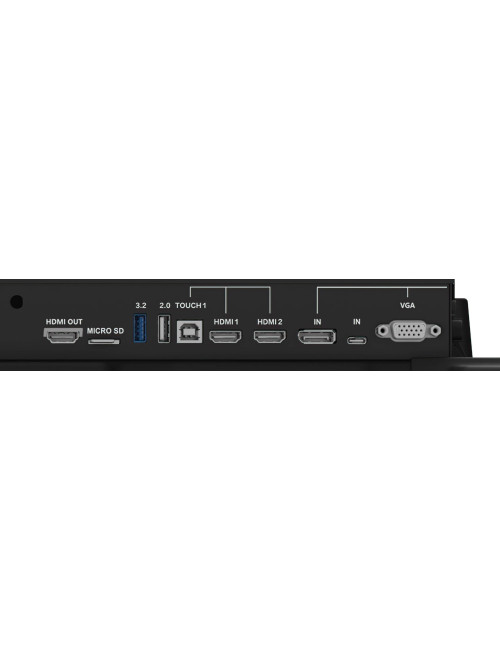

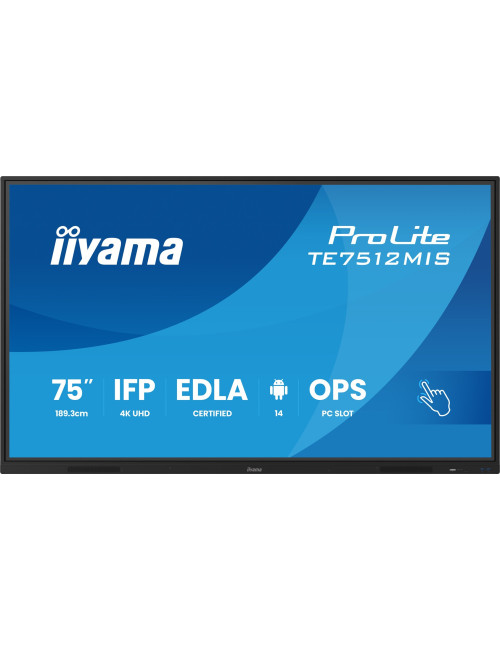

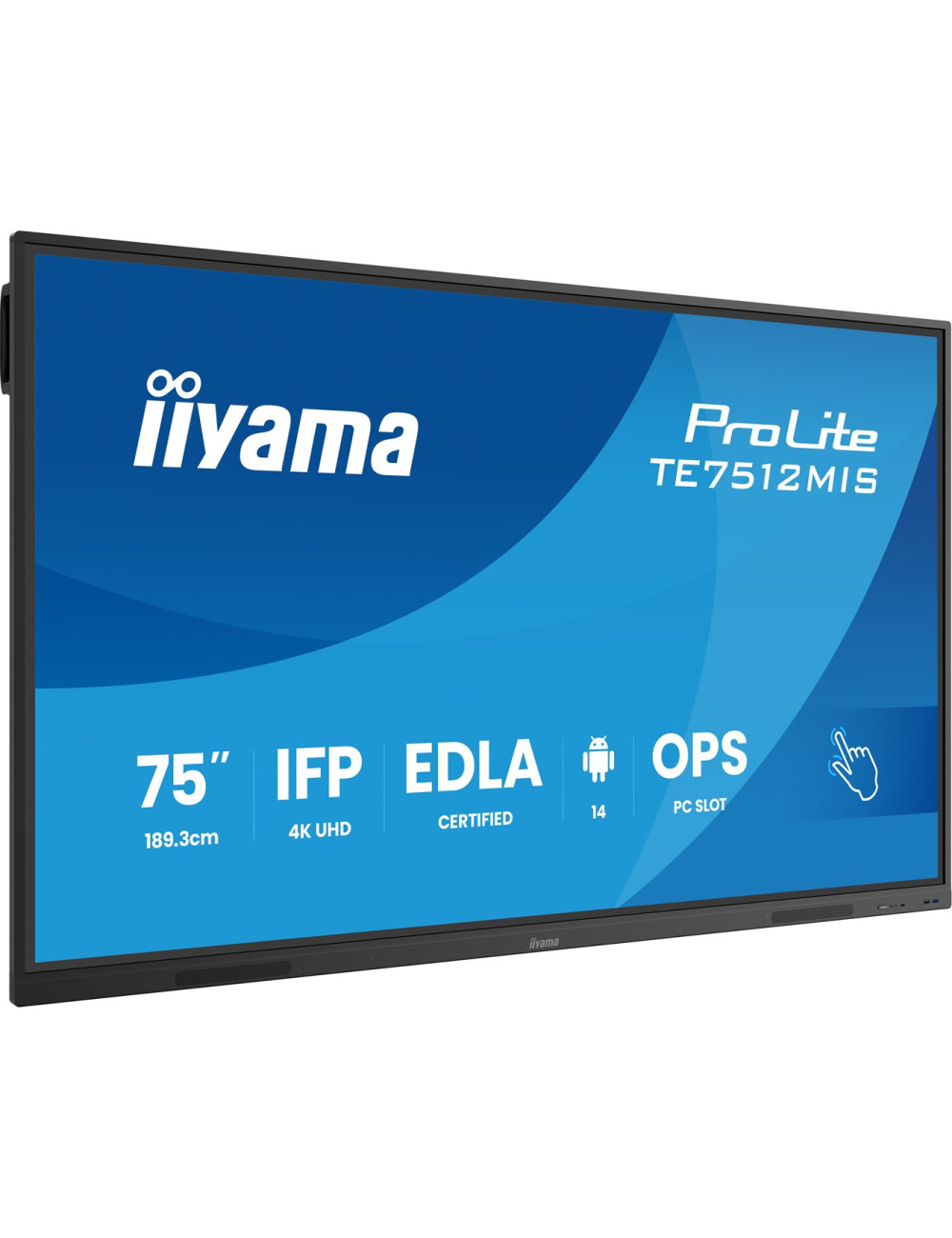

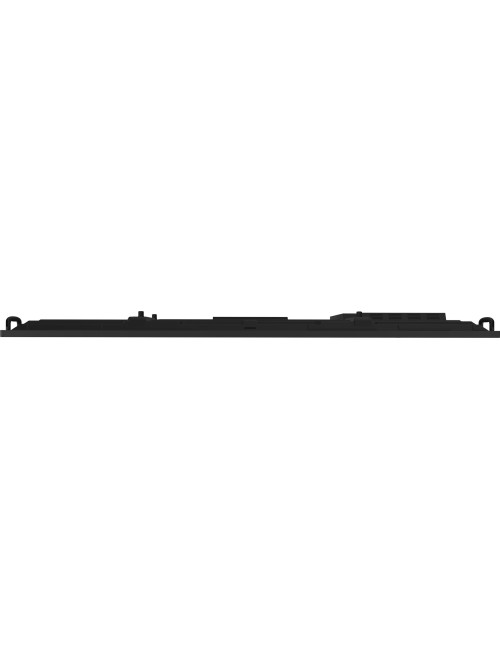

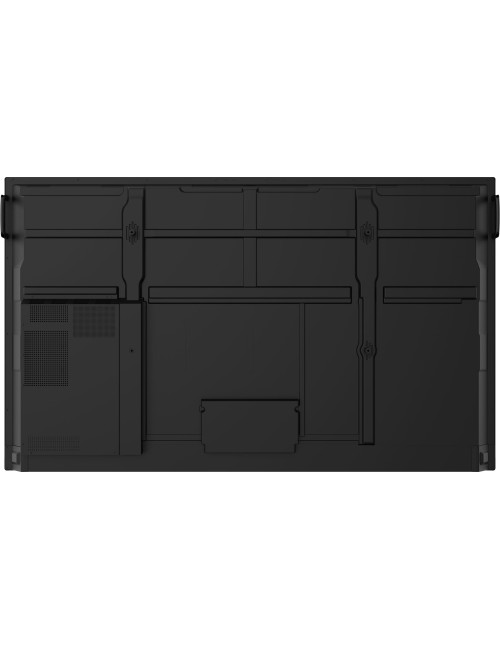

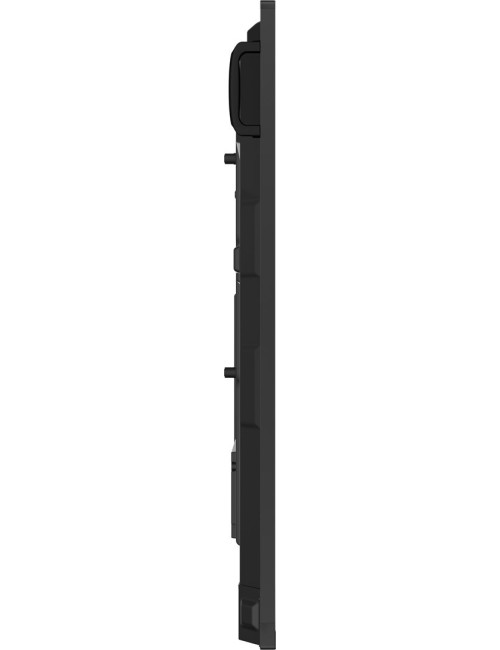

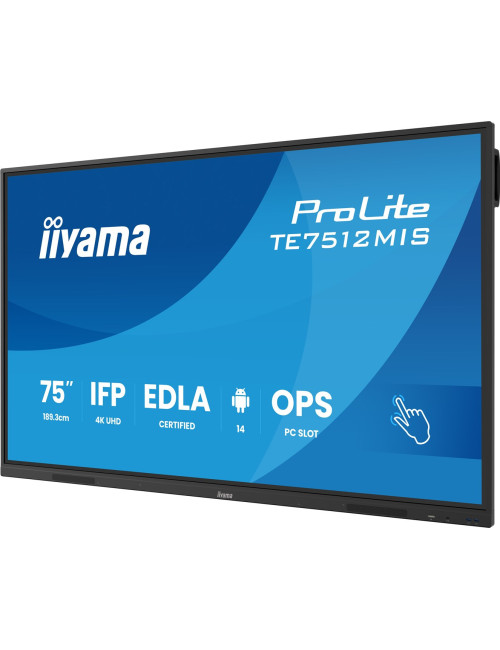

iiyama TE7512MIS-B4AG Signage Display Interactive flat panel 190.5 cm (75") LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen

Prekė detaliau

Kodas WLONONWCROAIU

Yra sandėlyje 4 Prekės

Charakteristikos

Plug and Play

Yes

Purpose

Universal

Package depth

1863 mm

Package height

1148 mm

Package width

1863 mm

Package weight

51.5 kg

Batteries included

Yes

Headphone connectivity

3.5 mm

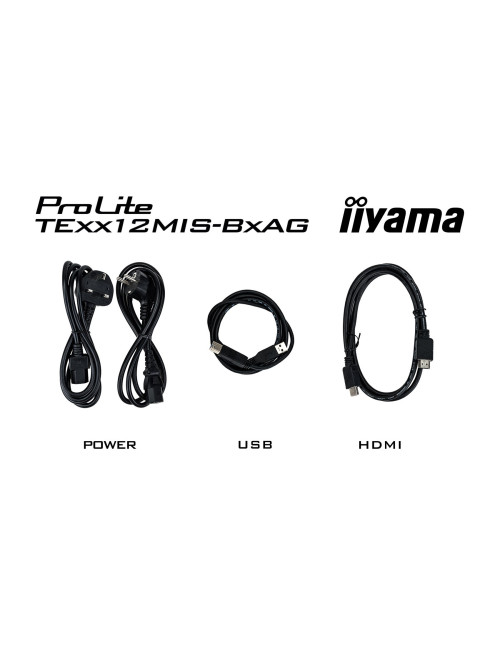

Cables included

AC

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Mounting type

Wall

USB port

Yes

Power supply type

Internal

Quick start guide

Yes

Audio output

3.5mm

Mean time between failures (MTBF)

50000 h

Processor family

ARM Cortex

HDMI ports quantity

3

DisplayPorts quantity

1

Display technology

LCD

Wi-Fi

Yes

Internal memory

8 GB

Compatible memory cards

MicroSD (TransFlash)

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Operating system installed

Android

Internal storage capacity

128 GB

Display diagonal

190.5 cm (75")

Operating system version

14

Backlight type

Direct LED

USB version

3.2 Gen 1 (3.1 Gen 1)

USB ports quantity

5

LED backlight

Yes

Power consumption (typical)

174 W

HDCP

Yes

Display brightness

400 cd/m²

Response time

6.5 ms

HD type

4K Ultra HD

Contrast ratio (typical)

5000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Native aspect ratio

16:9

Built-in speaker(s)

Yes

VESA mounting

Yes

Horizontal scan range

30 - 135 kHz

RMS rated power

32 W

On Screen Display (OSD) languages

Danish

Power consumption (standby)

0.5 W

Placement supported

Indoor

Panel type

VA

HDMI version

2.0

DisplayPort version

1.2

Contrast ratio (dynamic)

8000:1

Card reader integrated

Yes

Touchscreen

Yes

DisplayPorts in

1

Display number of colours

1.07 billion colours

Power consumption (off)

0.3 W

Pixel pitch

0.43 x 0.43 mm

Display diagonal (metric)

189.3 cm

Ethernet LAN (RJ-45) ports

1

LED backlighting type

Direct-LED

Touchscreen technology

PureTouch-IR

Housing material

Metal

Ethernet LAN data rates

1000

Ethernet LAN

Yes

USB connector type

USB Type-C

Headphone outputs

1

AC input voltage

100 - 240 V

PC Audio in

Yes

AC input frequency

50/60 Hz

RS-232C

Yes

Number of built-in speakers

2

On Screen Display (OSD)

Yes

Orientation

Horizontal

Built-in processor

Yes

Product colour

Black

Energy consumption (SDR) per 1000 hours

174 kWh

Energy efficiency class (SDR)

G

Display resolution

3840 x 2160 pixels

Surface hardness

7H

Panel mounting interface

800 x 400

Energy efficiency scale

A to G

Anti-glare screen

Yes

Number of OSD languages

14

HDCP version

2.2

Bezel width (bottom)

4.5 cm

Bezel width (side)

1.65 cm

Bezel width (top)

1.65 cm

Active display area (W x H)

1650 x 928 mm

USB Power Delivery up to

65 W

Warranty period

5 year(s)

Remote control included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Processor manufacturer

ARM

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

On-board graphics card model

ARM Mali-G52

Processor architecture

ARM Cortex-A53+Cortex-A72

Multi-touch

Yes

Glass thickness

3 mm

Number of simultaneous touchpoints

40

OPS slot

1

HDMI output ports quantity

1

Product design

Interactive flat panel

Operating hours (hours/days)

24/7

VGA (D-Sub) input ports

1

Computer system

Yes

HDMI input ports quantity

1

Remote (IR) input

1

Audio Return Channel (ARC)

Yes

OPS module slot

Yes

Compliance certificates

RoHS

Display depth

98 mm

Display weight

39 kg

Display height

1020 mm

Display width

1709 mm

Bezel colour

black

USB Power Delivery (USB PD)

Yes
