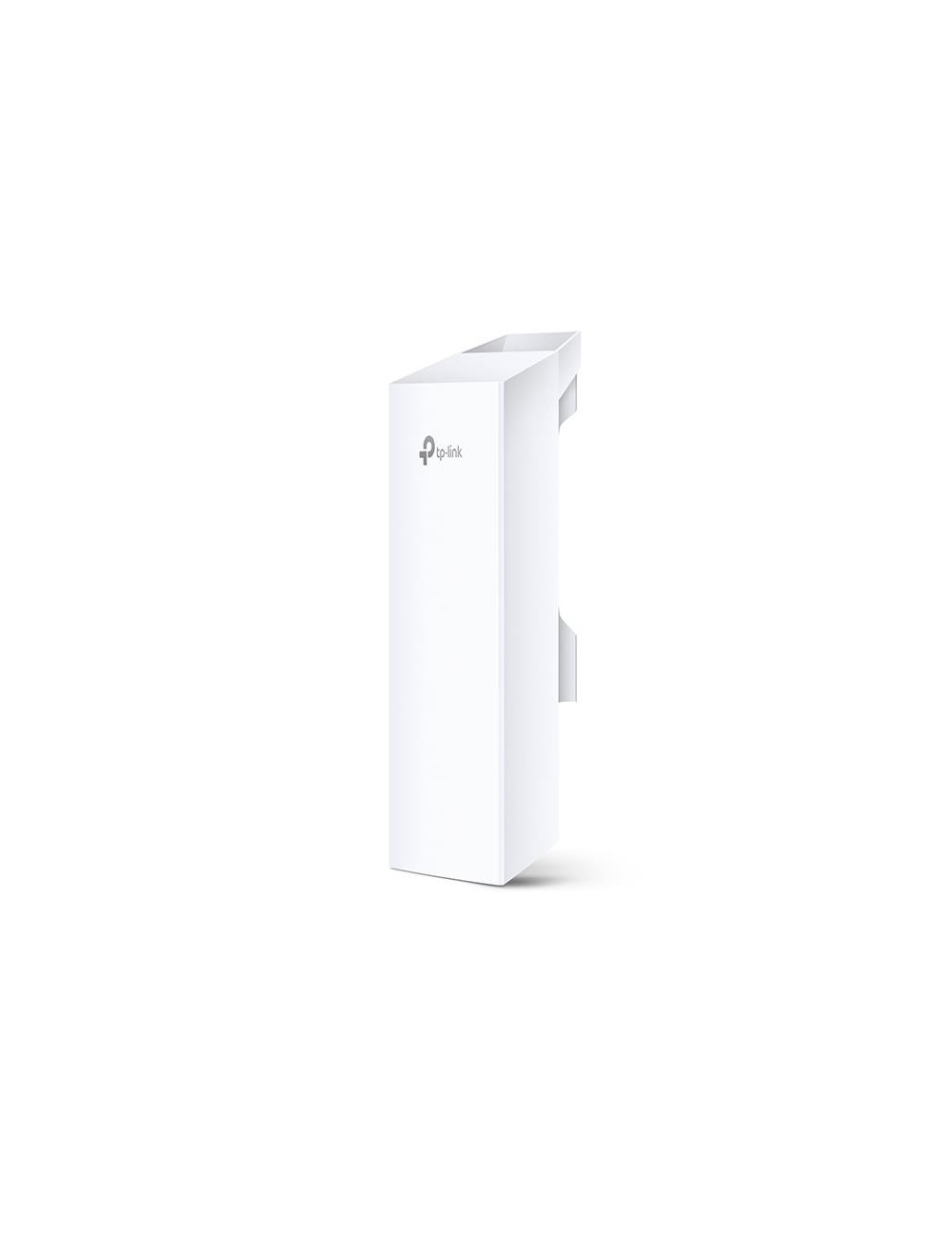

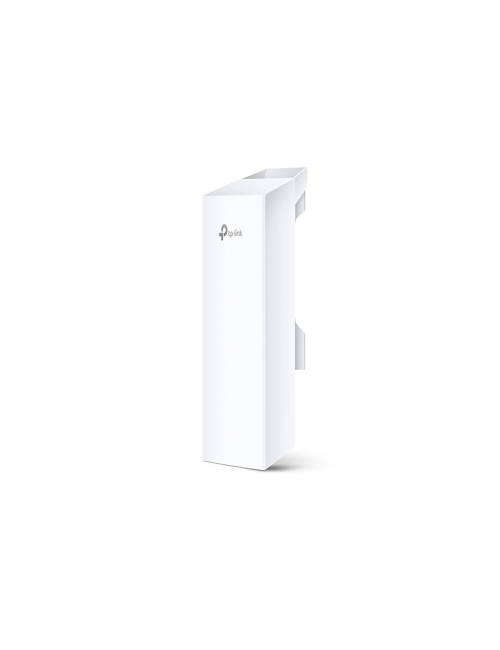

TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Prekė detaliau
Charakteristikos
- Garantija
- 36
- Category Code
- WAP
- Unit Box Height
- 0.105
- Unit Box Length
- 0.27
- Unit Box Width
- 0.13
- Vendor Homepage
- https://www.tp-link.com/pk/business-networking/outdoor-radio/cpe210/v3.20/
- Model name
- CPE210
- Units per Shipping Box
- 1
- Unit Calculated Weight
- 0.745 kg
- Unit Calculated Volume
- 0.003685 cubm
- CnCode
- 85176200
- Summary
- TP-Link CPE210. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Power over Ethernet (PoE). Product colour: White
- Weight & dimensions (Width)
- 224 mm
- Weight & dimensions (Depth)
- 79 mm
- Weight & dimensions (Height)
- 60 mm
- Packaging data (Package width)
- 132 mm
- Packaging data (Package depth)
- 270 mm
- Packaging data (Package height)
- 106 mm
- Packaging data (Package weight)
- 760 g
- Packaging content (Cables included)
- AC
- Ports & interfaces (Ethernet LAN (RJ-45) ports)
- 2
- Design (Product colour)
- White
- Management features (Firmware upgradeable)
- Yes
- Power (AC input frequency)
- 50 - 60 Hz
- Power (AC input voltage)
- 100 - 240 V
- Certificates (Certification)
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark CE, FCC, RoHS
- Operational conditions (Operating relative humidity (H-H))
- 10 - 90 %
- Operational conditions (Operating temperature (T-T))
- -30 - 70 C
- Operational conditions (Storage relative humidity (H-H))
- 5 - 95 %
- Operational conditions (Storage temperature (T-T))
- -40 - 70 C
- Ports & interfaces (DC-in jack)
- Yes
- Packaging content (Mounting kit)
- Yes
- Design (LED indicators)
- Status
- Packaging content (Quantity per pack)
- 1 pc(s)
- Performance (Built-in processor)
- Yes
- Performance (Internal memory)
- 64 MB
- Performance (Processor frequency)
- 560 MHz
- Design (International Protection (IP) code)
- IPX5
- Security (Security algorithms)
- AES/TKIP/WPA/WPA2/WPA2-PSK/WPA-PSK
- Performance (Flash memory)
- 8 MB
- Power (Output current)
- 0.25 A
- Power (Output voltage)
- 24 V
- Security (MAC address filtering)
- Yes
- Design (Reset button)
- Yes
- Security (IGMP snooping)
- Yes
- Management features (Web-based management)
- Yes
- Features (2.4 GHz)
- Yes
- Features (5 GHz)
- No
- Features (6 GHz)
- No
- Features (Maximum data transfer rate)
- 300 Mbit/s
- Features (Networking standards)
- IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
- Features (Wireless isolation)
- Yes
- Security (Service Set Identifier (SSID) features)
- SSID broadcast/SSID broadcast on/off
- Power (Power over Ethernet (PoE))
- Yes
- Power (Power over Ethernet (PoE) type supported)
- Passive PoE
- Design (Placement)
- Pole
- Antenna (Antenna direction type)
- Directional
- Antenna (Antenna gain level (max))
- 9 dBi
- Antenna (Antenna type)
- Internal
- Features (Frequency band)
- 2.4 - 2.483 GHz
- Features (MIMO)
- Yes
- Features (VLAN support)
- Yes
- Features (Maximum outdoor range)
- 5000 m
- Performance (Processor model)
- Qualcomm Atheros
- Antenna (Polarization)
- Dual polarization
- Features (Automatic channel scanning)
- Yes
- Features (Automatic channel selection)
- Yes
- Features (Dynamic Frequency Selection (DFS))
- Yes
- Security (Auto Wireless Distribution System (WDS))
- Yes
- Protocols (Universal Plug and Play (UPnP))
- Yes
- Management features (Management platform)
- Pharos Control
- Performance (Processor architecture)
- MIPS 74Kc
