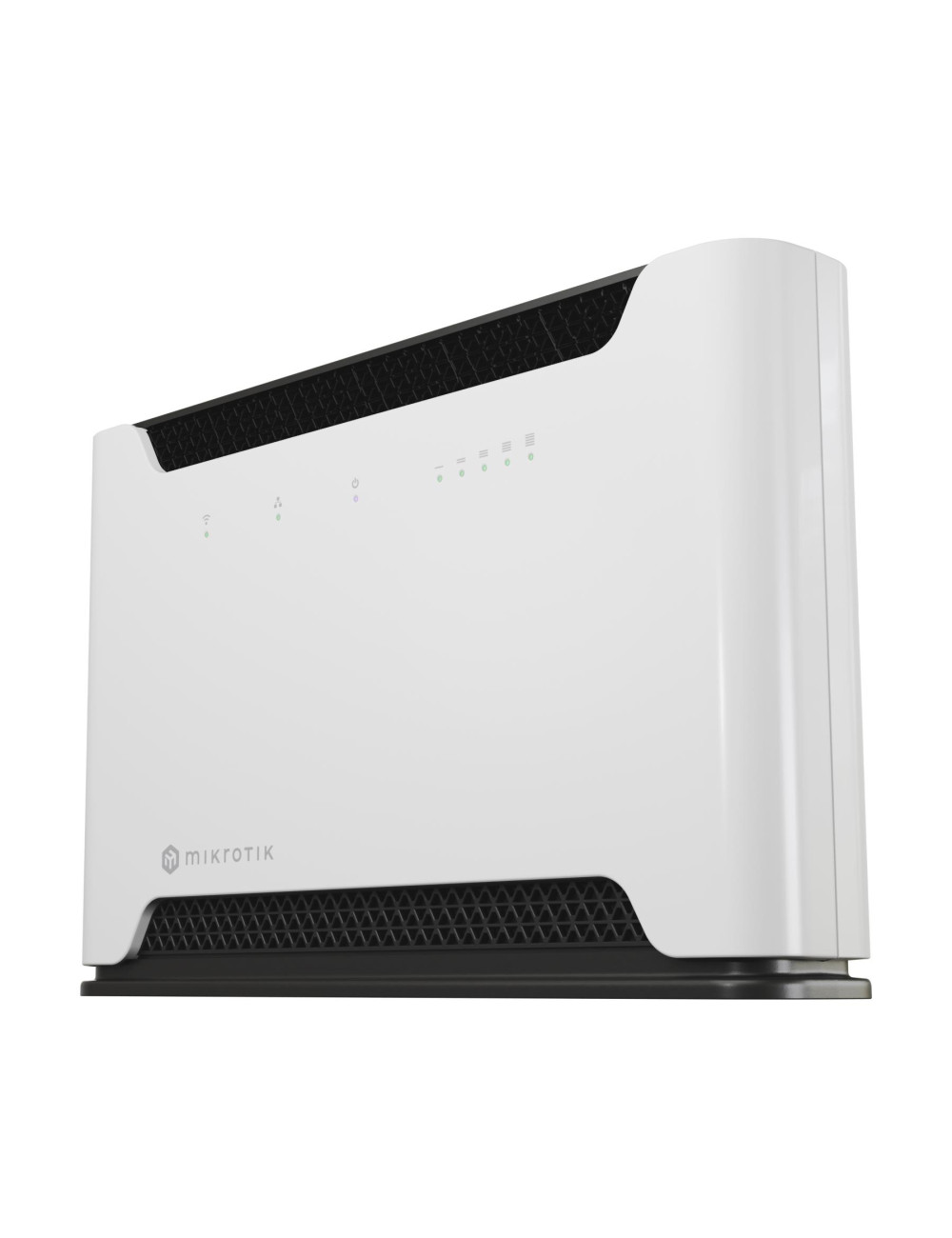

Our most versatile home router, featuring the new CAT7 modem and a speedy quad-core CPU for all your household network security and management tasks.
Dual-band, dual-chain Wi-Fi, 5x Gigabit ports, and full RouterOS v7 features – all at a significantly lower price than the previous LTE6 version.Perfect for secure VPN work, home offices, or small business networks that care about both function and aesthetics.Amazing in the hands of seasoned system administrators. Or in a household with zero IT skills. Or anything in-between. Chateau and RouterOS v7 can do it all!
All the new CAT7 devices also support 2×2 MIMO DL and carrier aggregation. That means they can use
multiple LTE bands simultaneously. That’s a huge advantage when there are a lot of mobile users in the area. It offers better responsiveness in a crowded environment. And higher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internet speed doubling in rural areas after enabling carrier aggregation.
| Feature | Specification |
| Product code | D53G-5HacD2HnD-TC&R11e-LTE7 |
| CPU | Quad-Core IPQ-4019 448-896 MHz (auto) |
| CPU architecture | ARM 32bit |
| Size of RAM | 256 MB |
| RAM type | DDR3L |
| Storage | 16 MB Flash |
| Number of 1G Ethernet ports | 5 |
| USB port | 1 (2.0 Type A) |
| Switch chip model | IPQ-4019 |
| Wireless interface model | IPQ-4019 (2.4 GHz), IPQ-4019 (5 GHz) |
| Wireless | 2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain |
| Antenna gain | 2.4 GHz - 2 dBi, 5 GHz - 4 dBi |
| LTE category | 7 (DL: 300 Mbps; UL: 100 Mbps) |
| LTE modem | R11e-LTE7 |
| TAC | 35312597 |
| MIMO DL | 2x2 |
| MIMO UL | 1x1 |
| LTE FDD bands | 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) |
| LTE TDD bands | 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) |
| 3G Category | R8 (DL: 42.2 Mbps; UL: 5.76 Mbps) |
| 3G bands | 1 (2100 MHz) / 3 (1800 MHz) / 8 (900 MHz) |
| Dimensions | 240 x 156 x 44 mm |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
Prekė detaliau
Charakteristikos
- 4G
- Yes
- Garantija
- 12
- Category Code
- WRO
- Unit Box Height
- 0.056
- Unit Box Length
- 0.33
- Unit Box Width
- 0.16
- Included Accessories
- 4 V 1.2 A power adapterUTP Flat Cable (1.5m)
- Model name
- Chateau LTE7
- MODEL
- D53G-5HacD2HnD-TC&R11e-LTE7
- Network Device Type
- Router
- Units per Shipping Box
- 1
- Product Net Weight
- 0.7 kg
- Unit Calculated Weight
- 0.9 kg
- Unit Calculated Volume
- 0.002957 cubm
- LTE
- Yes
