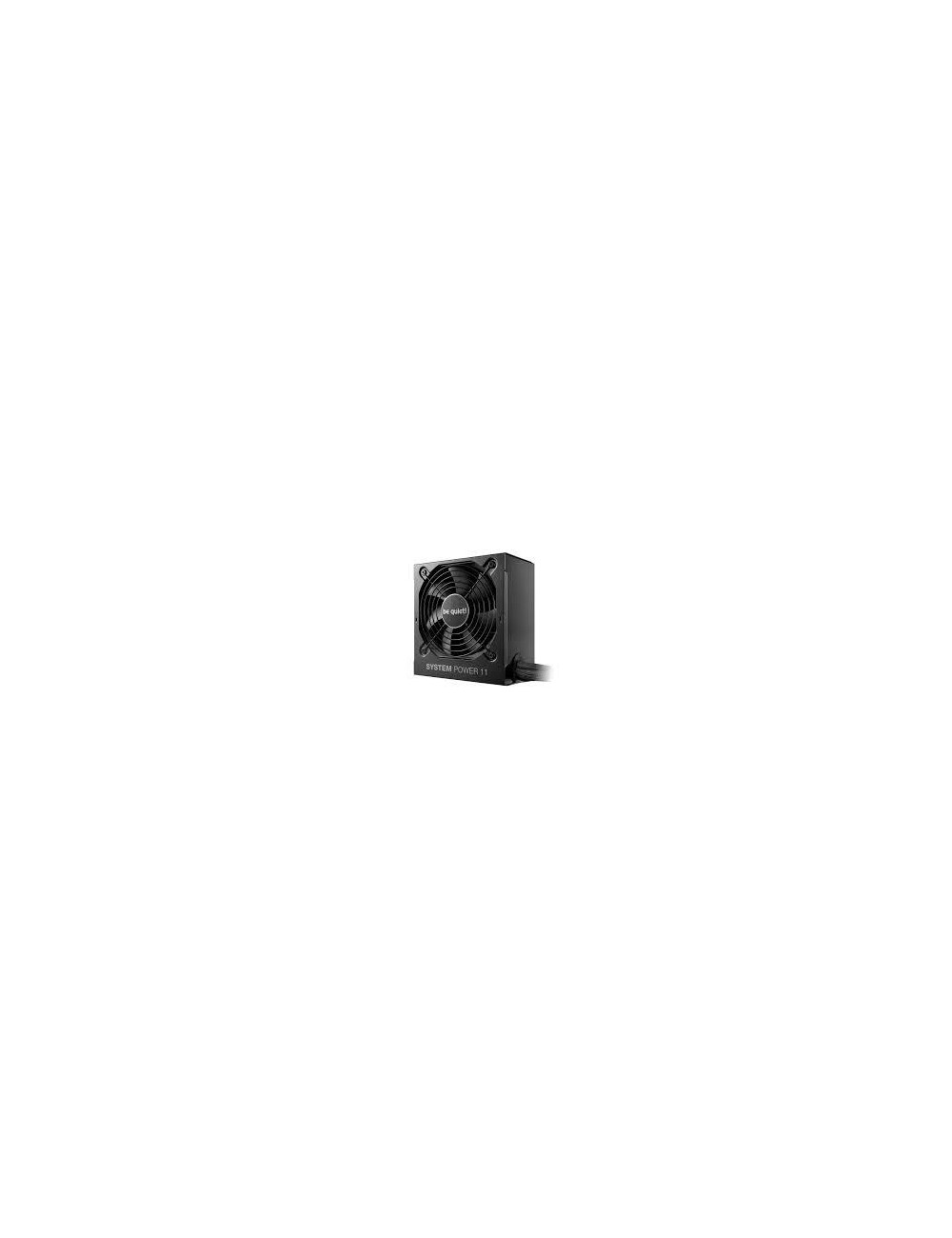

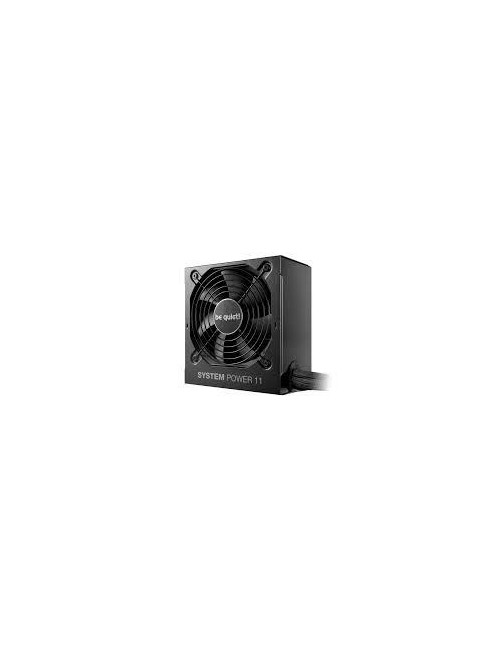

Power Supply|BE QUIET|ATX|PC|200 - 240 V|550 W|BP010EU
    BE QUIET

    Power Supply|BE QUIET|ATX|PC|200 - 240 V|550 W|BP010EU

    69,11 €
    Su mokesčiais
    550 W | 200 - 240 V | Efficiency 89.7 % | 80 PLUS certification 80 PLUS Bronze | PC | ATX | Noise level 24.2 dB | Fan diameter 120 mm | Weight 1.92 kg | Package type Box
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    Proven Reliability, Quiet Operation
    System Power 11 550W has been built with value-oriented users in mind that do not want to pass on reliability and quietness. Elaborated features such as ATX 3.1 compatibility and a temperature-controlled fan underline the value System Power 11 550W offers even at entry-level.

    • ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
    • Temperature-controlled 120mm quality fan reduces system noise
    • Rock-solid stability with a strong 12V-rail
    • Tight voltage regulation using DC-to-DC technology
    • One PCIe 5.1 12V-2x6 300W and 2 PCIe 6-2 connectors
    • Dependable operation to support powerful GPUs
    • Stand-by drain of less than 0.15 watts
    • 80 PLUS® Bronze efficiency (up to 89.7%)
    • Attractive black flat cables
    • Complete suite of top safety features
    • Product conception, design and quality control in Germany

    Prekė detaliau

    BE QUIET
    BP010EU
    3 Prekės

    Charakteristikos

    Garantija
    24
    Category Code
    PSU
    Vendor Homepage
    https://www.bequiet.com/en/download/products
    Units per Shipping Box
    1
    Unit Calculated Weight
    2.3 kg
    Unit Calculated Volume
    0.005 cubm
    CnCode
    85044095
    Summary
    be quiet! System Power 11 550W. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certificatio
    Weight & dimensions (Weight)
    1920 g
    Weight & dimensions (Width)
    150 mm
    Weight & dimensions (Depth)
    86 mm
    Weight & dimensions (Height)
    140 mm
    Packaging data (Package width)
    195 mm
    Packaging data (Package depth)
    268 mm
    Packaging data (Package height)
    97 mm
    Packaging data (Package weight)
    2300 g
    Design (Product colour)
    Black
    Packaging data (Package type)
    Box
    Power (AC input frequency)
    50 Hz
    Power (AC input voltage)
    200 - 240 V
    Power (Input current)
    4 A
    Design (Cooling type)
    Active
    Design (Number of fans)
    1 fan(s)
    Design (Fan diameter)
    120 mm
    Logistics data (Products per shipping (inner) case)
    6 pc(s)
    Certificates (Compliance certificates)
    CB/CE/RoHS/T V mark/UKCA/WEEE
    Power (Combined power (+12V))
    550 W
    Power (Combined power (+3.3V))
    120 W
    Power (Combined power (+5V))
    120 W
    Power (Combined power (+5Vsb))
    15 W
    Power (Combined power (-12V))
    3.6 W
    Power (Max output current (+3.3V))
    20 A
    Power (Max output current (+5V))
    20 A
    Power (Max output current (+5Vsb))
    3 A
    Power (Max output current (-12V))
    0.3 A
    Power (Power protection features)
    Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
    Power (Total power)
    550 W
    Ports & interfaces (Cabling type)
    Non-Modular
    Ports & interfaces (Motherboard power connector)
    20+4 pin ATX
    Ports & interfaces (Number of SATA power connectors)
    5
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    1
    Performance (80 PLUS certification)
    80 PLUS Bronze
    Performance (Mean time between failures (MTBF))
    100000 h
    Performance (Power supply unit (PSU) form factor)
    ATX
    Performance (Purpose)
    PC
    Design (On/off switch)
    Yes
    Power (Efficiency)
    89.7 %
    Ports & interfaces (CPU P4 connector (4-pin))
    1
    Ports & interfaces (CPU power connector (4+4 pin))
    Yes
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    2
    Performance (Bearing technology)
    Rifle
    Performance (Noise level)
    24.2 dB
    Power (Hold time)
    16.86 ms
    Power (Power factor)
    0.98
    Performance (ATX version)
    3.1
    Power (Max output current (+12V1))
    45.83 A
    Power (Number of +12V rail(s))
    1
    Performance (EPS version)
    2.92
    Design (Fan speed)
    0 - 1800 RPM
    Certificates (Waste Electrical and Electronic Equipment (WEEE) compliance)
    Yes
    Technical details (Sustainability certificates)
    ENERGY STAR/ErP
    Logistics data (Shipping (inner) case gross weight)
    14900 g
    Logistics data (Shipping (inner) case height)
    218 mm
    Logistics data (Shipping (inner) case length)
    556 mm
    Logistics data (Shipping (inner) case width)
    311 mm
    Other features (Cable ties included)
    Yes
    Other features (Screws included)
    Yes
    Ports & interfaces (PCI Express power connectors (12-pin))
    1
