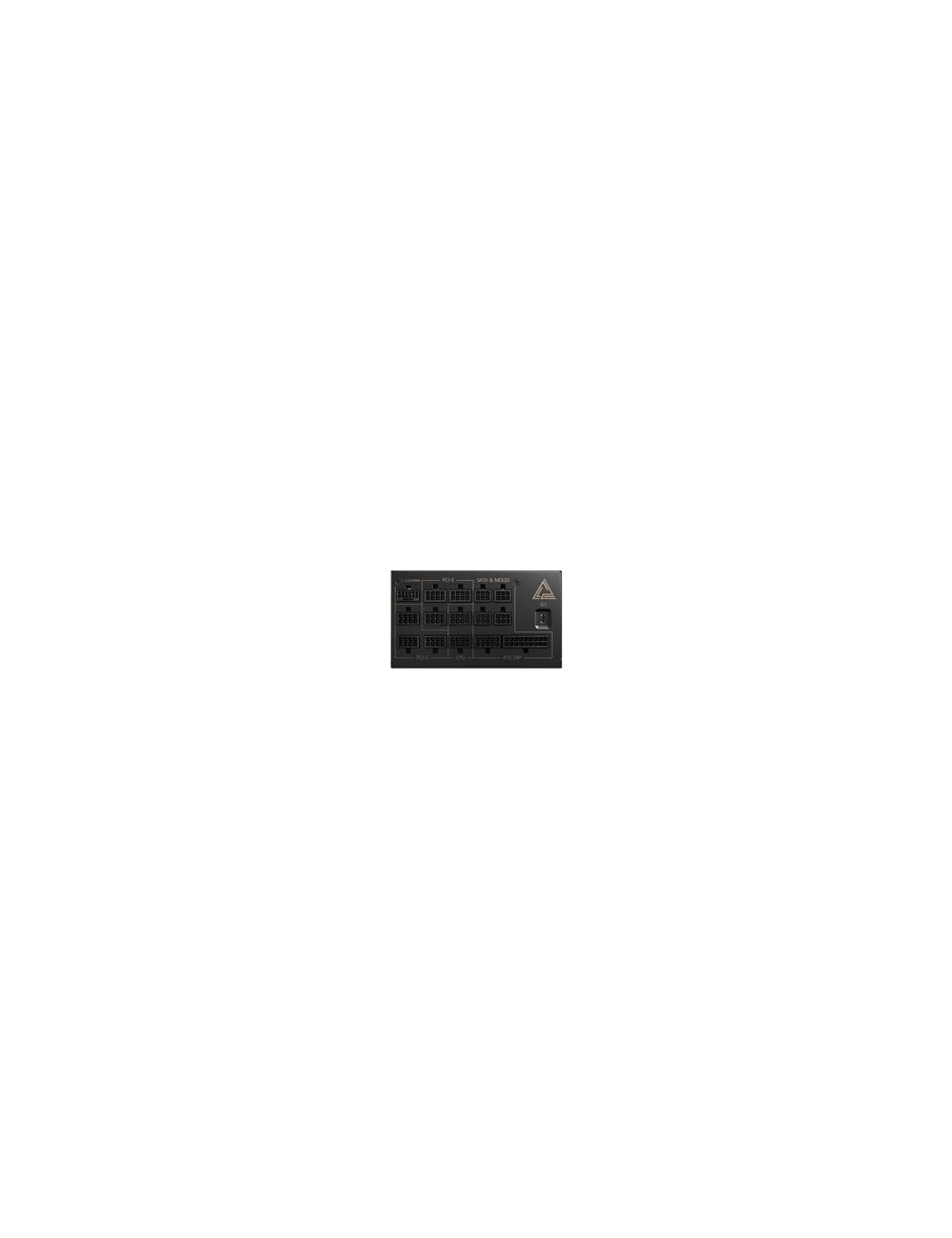

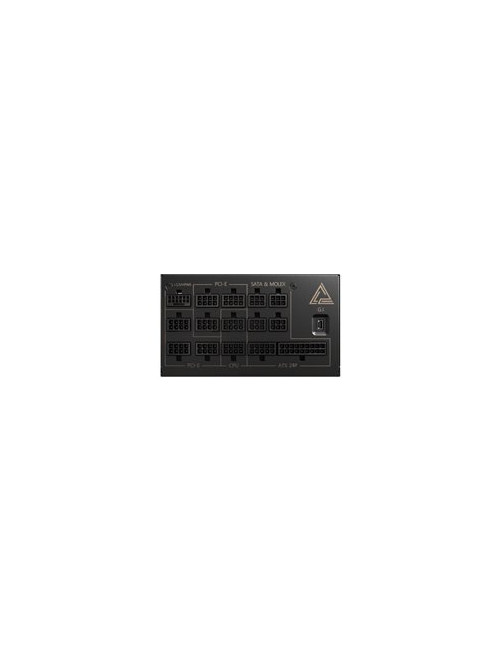

MSI MEG Ai1300P PCIE5 1300W PSU
    MSI

    MSI MEG Ai1300P PCIE5 1300W PSU

    297,58 €
    Su mokesčiais
    The MEG series is revealed as a legend that represents the ultimate elegance in gaming. Push the limits of what an extreme gaming series can be.
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą
    • ATX 3.0 fully supported
    • PCIe 5.0 ready, with native 16-pin connector
    • Full modular design
    • 80 PLUS Platinum certified for high efficiency
    • 100% Japanese 105°C capacitor
    • Active PFC design
    • Industrial-level protection with OVP, OCP, OPP, OTP, SCP, UVP
    • LLC Half Bridge Topology with DC-DC module design

    Prekė detaliau

    MEG AI1300P PCIE5
    3 Prekės

    Charakteristikos

    Dimensions (WxDxH)
    15 cm x 16 cm x 8.6 cm
    Weight
    1.5 kg
    Device type
    Power supply - active Power Factor Correction (PFC) - internal
    Input voltage
    AC 100-240 V
    Output voltage
    +3.3, +5, 12 V
    Output current
    +3.3V - 25 A +5V - 25 A -12V - 0.3 A +5VSB - 3 A +12V1 - 40 A +12V2 - 50 A +12V3 - 50 A +12V4 - 50 A +12V5 - 50 A
    PRODUCT DESCRIPTION
    MSI MEG Ai1300P PCIE5 - power supply - 1300 Watt
    Included Accessories
    Screws, cable combs
    Cooling System
    120 mm fan
    80 PLUS certification
    80 PLUS Platinum
    Manufacturer Warranty
    10 years warranty
    Specification Compliance
    ATX12V / EPS12V
    Power Capacity
    1300 Watt
    Output connectors
    1 x power 24 pin ATX 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x power 8 pin EPS12V 1 x 12+4 pin PCI Express 5.0 power 650 W 8 x 8 pin PCI Express power with detachable 2 pin section 16 x 15 pin Serial ATA power 4 x 4 PIN internal powe
    Modular Cable Management
    Yes

    Greitas palyginimas

    Prekė
    		 Power Supply|BE QUIET|ATX|PC|100 - 240 V|1200 W|BP021EU Power Supply|BE QUIET|ATX|PC|100 - 240 V|1200 W|BP021EU Power Supply|MSI|1300 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MEGAI1300PPCIE5 Power Supply|MSI|1300 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MEGAI1300PPCIE5
    Prieinamumas
    Kaina
    300,92 €
    303,72 €
    Aprašymas
    		 1200 W | 100 - 240 V | Efficiency 93.1 % | 80 PLUS certification 80 PLUS Titanium | PC | ATX | Noise level 21.1 dB | Fan diameter 135 mm | Weight 2.3 kg MEG AI1300P PCIE5|For gaming|ATX 3.0|1300 Watts|Cooling System 12cm fan|80 PLUS PLATINIUM|PFC Active
    Garantija
    		 24 24
    Category Code
    		 PSU
    Vendor Homepage
    		 www.msi.com/Power-Supply/MEG-Ai1300P-PCIE5
    Units per Shipping Box
    		 1
    Unit Calculated Weight
    		 3.7 kg
    Unit Calculated Volume
    		 0.01 cubm
    Summary
    		 be quiet! Dark Power 14 1200 W - 80 Plus Titanium. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1300 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600,750,900,1050 mm. Purp
    Weight & dimensions (Weight)
    		 2300 g
    Weight & dimensions (Width)
    		 150 mm
    Weight & dimensions (Depth)
    		 175 mm
    Weight & dimensions (Height)
    		 86 mm
    Packaging data (Package width)
    		 230 mm
    Packaging data (Package depth)
    		 126 mm
    Packaging data (Package height)
    		 355 mm
    Packaging data (Package weight)
    		 3700 g
    Design (Product colour)
    		 Black
    Power (AC input frequency)
    		 50/60 Hz
    Power (AC input voltage)
    		 100 - 240 V
    Packaging data (Manual)
    		 Yes
    Operational conditions (Operating temperature (T-T))
    		 0 - 40 C
    Design (Cooling type)
    		 Active
    Design (Number of fans)
    		 1 fan(s)
    Design (Fan diameter)
    		 135 mm
    Logistics data (Products per shipping (inner) case)
    		 4 pc(s)
    Certificates (Compliance certificates)
    		 CB/cTUVus/Federal Communications Commission (FCC)/RoHS/T V mark/UKCA/WEEE
    Power (Combined power (+12V))
    		 1200 W
    Power (Combined power (+3.3V))
    		 120 W
    Power (Combined power (+5V))
    		 120 W
    Power (Max output current (+3.3V))
    		 25 A
    Power (Max output current (+5V))
    		 24 A
    Power (Max output current (+5Vsb))
    		 3 A
    Power (Max output current (-12V))
    		 0.5 A
    Power (Power protection features)
    		 Over current/Over voltage/Overheating/Overload/Short circuit/Surge & inrush protection (SIP)/Under voltage
    Power (Total power)
    		 1200 W
    Ports & interfaces (Cabling type)
    		 Fully-Modular
    Ports & interfaces (Motherboard power cable length)
    		 600 mm
    Ports & interfaces (Motherboard power connector)
    		 20+4 pin ATX
    Ports & interfaces (Peripheral (Molex) power cable length)
    		 1050/900 mm
    Ports & interfaces (Peripheral (Molex) power connectors (4-pin))
    		 2
    Ports & interfaces (SATA power cable length)
    		 1050/600/750/900 mm
    Performance (80 PLUS certification)
    		 80 PLUS Titanium
    Performance (Mean time between failures (MTBF))
    		 100000 h
    Performance (Power supply unit (PSU) form factor)
    		 ATX
    Performance (Purpose)
    		 PC
    Design (On/off switch)
    		 Yes
    Power (Efficiency)
    		 93.1 %
    Power (Maximum input current (@110V))
    		 10 A
    Power (Maximum input current (@220V))
    		 5 A
    Ports & interfaces (CPU power cable length)
    		 700 mm
    Ports & interfaces (CPU power connector (4+4 pin))
    		 Yes
    Ports & interfaces (EPS power connector (8-pin))
    		 Yes
    Ports & interfaces (PCI Express power cable length)
    		 600 mm
    Ports & interfaces (PCI Express power connectors (6+2 pin))
    		 4
    Performance (Bearing technology)
    		 FDB
    Performance (Noise level)
    		 21.1 dB
    Power (Hold time)
    		 19.5 ms
    Power (Power factor)
    		 0.98
    Ports & interfaces (PCI Express connector)
    		 Yes
    Performance (ATX version)
    		 3.1
    Ports & interfaces (ATX power connector (20+4 pin))
    		 Yes
    Ports & interfaces (EPS power connector (4+4 pin))
    		 Yes
    Power (Max output current (+12V1))
    		 33 A
    Power (Number of +12V rail(s))
    		 4
    Performance (EPS version)
    		 2.92
    Design (Fan speed)
    		 0 - 2100 RPM
    Technical details (Sustainability certificates)
    		 ENERGY STAR/ErP/Triman
    Logistics data (Shipping (inner) case height)
    		 260 mm
    Logistics data (Shipping (inner) case length)
    		 528 mm
    Logistics data (Shipping (inner) case width)
    		 368 mm
    Other features (Cable ties included)
    		 Yes
    Other features (Screws included)
    		 Yes
    Ports & interfaces (PCI Express power connectors (12-pin))
    		 2
    Power (Max output current (+12V2))
    		 33 A
    Power (Max output current (+12V3))
    		 45 A
    Power (Max output current (+12V4))
    		 45 A
    Power (Peak power)
    		 1300 W
    Ports & interfaces (Number of SATA power cables)
    		 13
    Design (On/off fan switch)
    		 Yes
    Packaging data (Manual languages)
    		 English/French/German/Italian/Japanese/Polish/Russian/Simplified Chinese/Spanish/Thai/Ukrainian
    Logistics data (Shipping (inner) case net weight)
    		 20140 g
