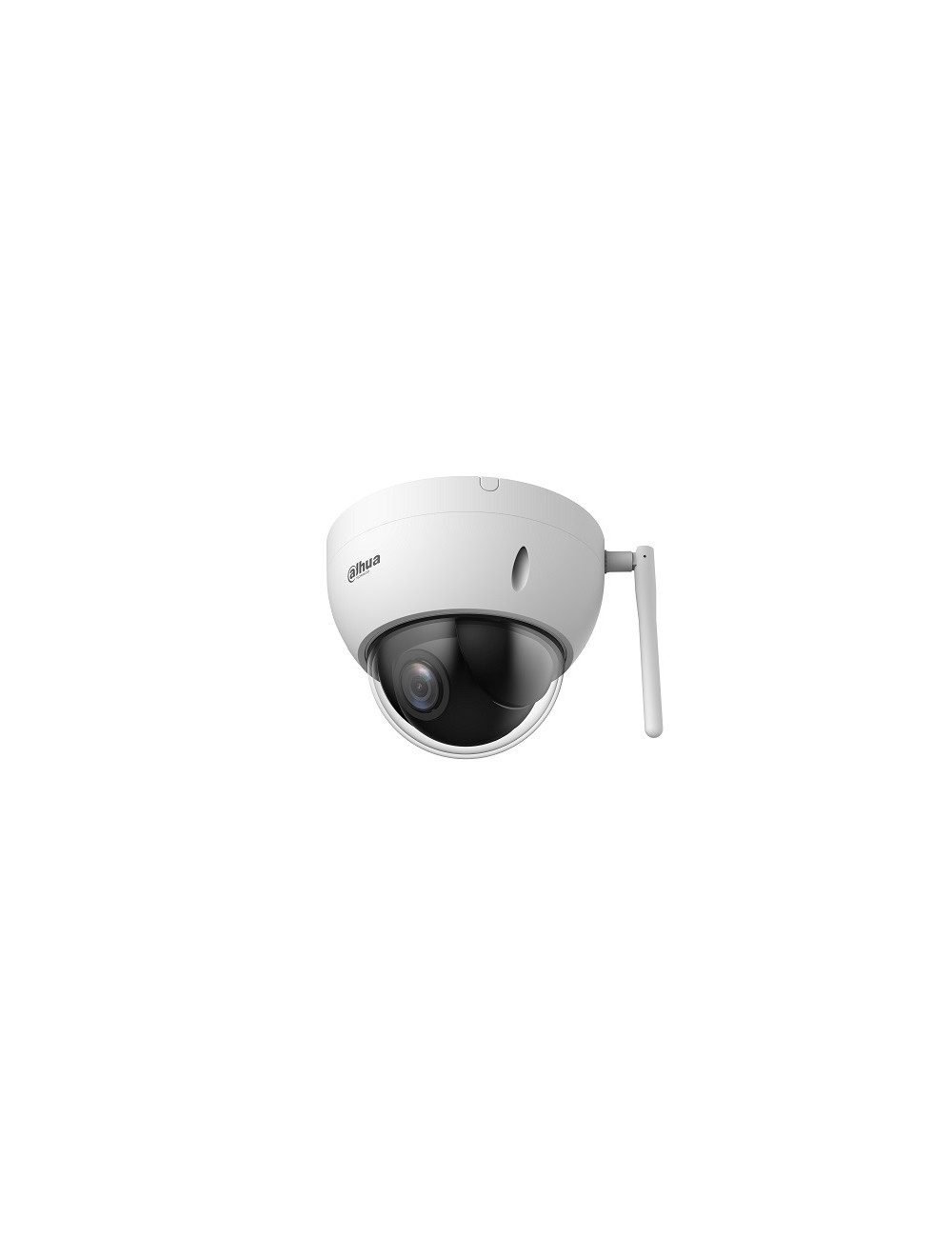

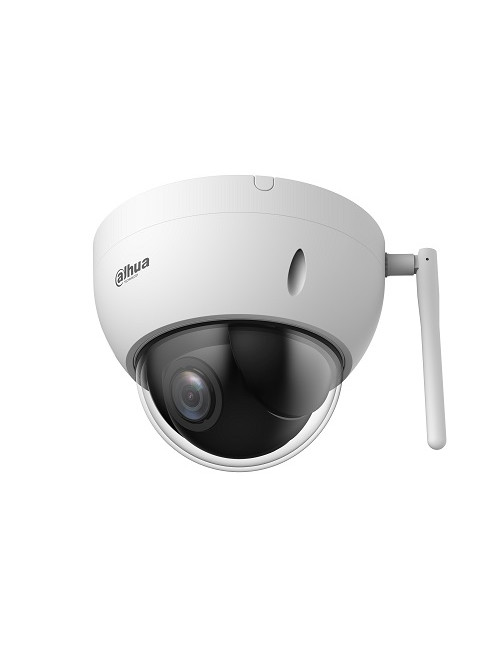

Mini IP valdoma kamera 4MP 1/2.8 colio CMOS sensorius, 4x artinimas, WIFI, IK10, IP66
    DAHUA TECHNOLOGY CO., LTD

    Mini IP valdoma kamera 4MP 1/2.8 colio CMOS sensorius, 4x artinimas, WIFI, IK10, IP66

    268,20 €
    Su mokesčiais
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą
    Trumpas aprašymas:

    IP valdoma kamera kupolinė; Wi-Fi; 4MP(2560 × 1440)@ 1~25fps, STARLIGHT; 1/2.8” colio SONY STARVIS sensorius. BLC / HLC / DWDR; IVS, 3D NR, SMD3.0. Min. apšvietimas: Color: 0.005Lux@F1.6; 0.0005Lux@F1.6 B/W. Video kompresija H.265+/ H.264. SD atminties prievadas maks. 512GB. Artinimas: x4 Optinis, x16 Skaitmeninis. Atspari drėgmei IP66 (skirta lauko sąlygoms); atspari smūgiams IK10, TVS 6000V apsauga nuo žaibo. Palaiko CGI, SDK, P2P, ONVIF (Profile S&G&T) standartus. WizSense; modelis: SD22404DB-GNY-W.

    Trumpa techninė charakteristika:

    • IVS funkcijos: linijos kirtimas, įsibrovimas į perimetrą, vaizdo pasikeitimas, dingusio objekto fiksavimas.
    • Smart Motion Detection (SMD3.0), Žmogaus sekimo funkcija, perimetro apsauga.
    • 1/2.8" 4MP SONY STARVIS™ CMOS sensorius.
    • Artinimas: x4 Optinis, x16 Skaitmeninis.
    • Video kompresija: H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+.
    • Video formatas PAL.
    • Operacinė sistema LINUX.
    • ROM 128GB, RAM 512GB.
    • Skenavimo sistema: Progresyvinė.
    • Nuotolinis valdymas ir tiesioginis stebėjimas per Ethernet (WEB): IE 9+, Chrome 41+, Firefox 50+, iOS 10+.
    • Palaikomos programos: DMSS, DSS.
    • Nemokama programa leidžianti vartotojui stebėti, peržiūreti įrašus kamerų iš skirtingų objektų, programa leidžia vaizdą įrašinėti į kompiuterį.
    • Nemokama programa stebėjimui per mobilųjį telefoną arba per delninį kompiuterį (iOS, Android) tinka telefonams: SYMBIAN, IPHONE, WINDOWS MOBILE, BLACKBERY, ANDROID, IPAD, GALAXY TAB ir t.t.
    • IP kamerą galima naudoti su kitų firmų programine įranga.
    • Efektyvių vaizdo elementų skaičius: 2560 (H) × 1440 (V).
    • Vaizdo rezoliucijos galimi variantai: 4M (2560 × 1440); 3M (2304 × 1296@25fps); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1(704 × 576); CIF(352 × 288); VGA(640 × 480).
    • Suspaudimo greitis: pagrindinis srautas: 4M/ 3M/ 1080p/ 1.3M/ 720p @(1~25/fps), antras srautas: D1/ VGA/ CIF @(1~25fps), trečias srautas 720p@(1~25fps).
    • Srauto greitis: H.264: 2816Kbps – 13056Kbps; H.265: 1024Kbps – 7936Kbps.
    • Kelių srautų palaikymas vienu metu: 3 srautai.
    • Apžvalgos/Pokrypio greitis: Pan: 100°/s; vaizdo pasukimas 180°.
    • Matymo kampas: H: 90.3°-29.4°; V: 48.5°-16.6°; D: 105.7°-33.6°.
    • Židinio nuotolis: 2.8 mm -12 mm, F1.6-F3.0.
    • Rankinis valdymo greitis: Pan: 0.1°/s–100°/s; Tilt: 0.1°/s–60°/s.
    • Preset (etiketės) greitis: Pan: 100°/s; Tilt: 60°/s.
    • Fokusavimas: Automatinis / rankinis, pusiau automatinis.
    • D/N: persijungia iš spalvotos veikos į juodai baltą, esant tam tikram šviesos intensyvumui.
    • Min. apšvietimas: 0.005Lux@F1.6; B/W 0.0005Lux@F1.6.
    • Elektroninis užlaikymas: Automatinis/Rankinis, 1/1s~1/30,000s.
    • Baltos šviesos balansas: Automatinis/Rankinis, ATW, vidaus, lauko, natūralios šviesos, gatvės šviesos ir pan.
    • Vaizdo stabilizavimas (Image Stabilization).
    • Defog funkcija: elektroninė.
    • S/N santykis >55dB.
    • BLC / HLC / DWDR.
    • NR (2D/3D): triukšmų mažinimo technologija.
    • Preset: 300 Preset (Etiketė, kameros nustatymai).
    • Pattern: 5, turai 8.
    • Judesio detekcijos funkcija presetams.
    • Integruotas Wi-Fi (802.11b/g/n); 2.4GHz; 150Mbps.
    • 10/100 Mb/s tinklo lizdas (Ethernet RJ-45).
    • Tinklo protokolai: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS; ONVIF (Profile S&G&T); P2P, CGI, SDK.
    • Nuotolinis valdymas: monitoringas, PTZ valdymas (SD Pelco-P/D), sistemos nustatymai, failų atsisiuntimas, peržiūra, programinės įrangos atnaujinimas.
    • Maksimalus vartotojų prisijungimas vienu metu: 20 (bendras srautas 64M).
    • Įrašymas: į FTP arba NAS serverius.
    • Atspari drėgmei IP66.
    • Vidinė atmintis: SD prievadas maks. 512GB.
    • Darbinė temperatūra: -30°C ~60°C.
    • Drėgmė: <95%.
    • Maitinimas: DC 12 V/ 1A (±25%).
    • Galingumas: bazinis 2.7W, maks. 4.8W.
    • Matmenys: 89 mm x 122 mm.
    • Svoris: 500g.
    • Garantija 36 mėn.
    Suderinami laikikliai:
    • PFA137.
    • PFA106.
    • PFA152-E.
    • PFB206W.
