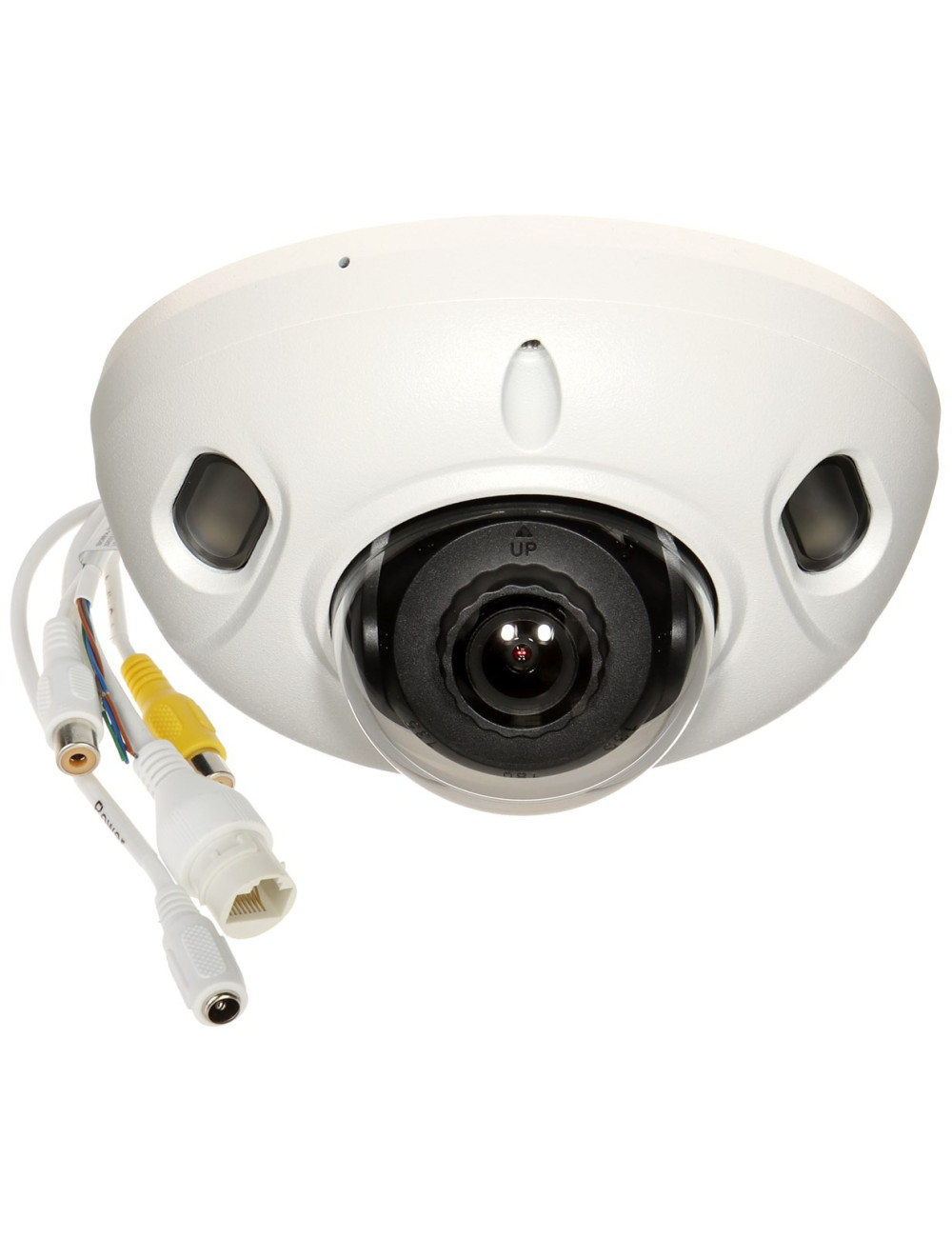

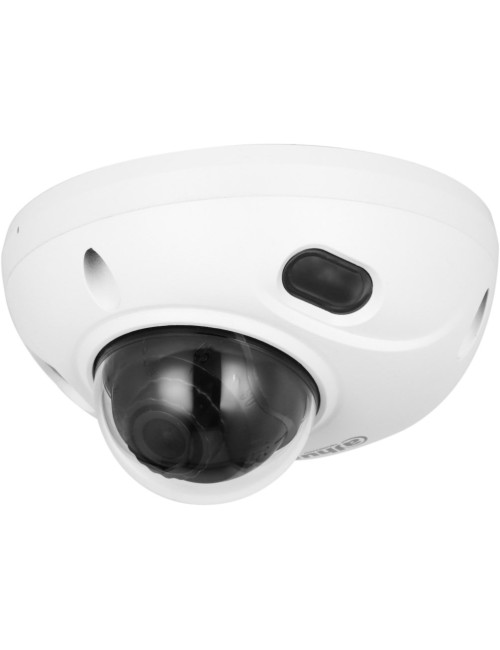

KAMERA IP DAHUA IPC-HDBW3541F-AS-0280B-S2

Prekė detaliau

Charakteristikos

Type

IP security camera

Width

111 mm

Height

64.8 mm

Depth

111 mm

Connectivity technology

Wired

Weight

423 g

Power source type

DC, PoE

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-40 - 60 °C

Mounting type

Ceiling

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

3 Kbp - 8192Kbps

Mobile operating systems supported

Android

Sensor type

HD CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

Signal-to-Noise Ratio (SNR)

56 dB

Power consumption (max)

5.9 W

Power consumption (typical)

3.8 W

Maximum resolution

2960 x 1668 px

Placement supported

External / Internal

Ethernet LAN (RJ-45) ports

1

Housing material

Metal, Plastic

Networking standards

IEEE 802.1x

Lens type

Fixed focal length lens

Supported graphics resolutions

1920 x 1080 (HD 1080)

International Protection (IP) code

IP67

Ethernet interface type

10 Megabit Ethernet

Motion Detection

Yes

Web-based management

Yes

Frame Rate

25 / 30 fps

Product colour

White

Focal length range

2.8 mm

Web browser

Yes

Number of memory card slots

1

RAM capacity

512 MB

LED type

IR

Night vision

Yes

Total megapixels

5 MP

4G LTE

No

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Minimum illumination

0.005 lx

Video compression formats

H.264H

DC output voltage

12, 48

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Lens viewing angle, vertical

58°

Noise reduction technology

3D noise reduction

Maximum aperture number

1.6

Lens viewing angle, horizontal

111°

Number of sensors

1

Wide Dynamic Range (WDR)

120 dB

Viewing angle, diagonal

132°

Progressive scan

Yes

Video streaming

Yes

Alarm input/output

N

ROM capacity

128 MB

Camera shutter speed

1/3 - 1/100000 s

Adjustment shutter speed

Auto/Manual

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Number of illumination LEDs

2

Motion detection

Yes

People detection

Yes

Two-way talk

Yes

People detection

Yes

Power consumption (Power over Ethernet (PoE))

7.2 W

Built-in loudspeaker

Yes

Identify distance (wide)

6.4 m

Recognize distance (wide)

12.7 m

Horizontal rotation angle

0 - 355°

Vertical rotation angle

-20 - 70°

Degree of protection IK

IK10

Closest focusing distance

0.9 m

Detect distance (wide)

63.6 m

Audio RCA outputs

1

Audio codecs

G.711a / G.711Mu / G.723 / G.726 / PCM

RCA input

1

Aperture type

Permanent
