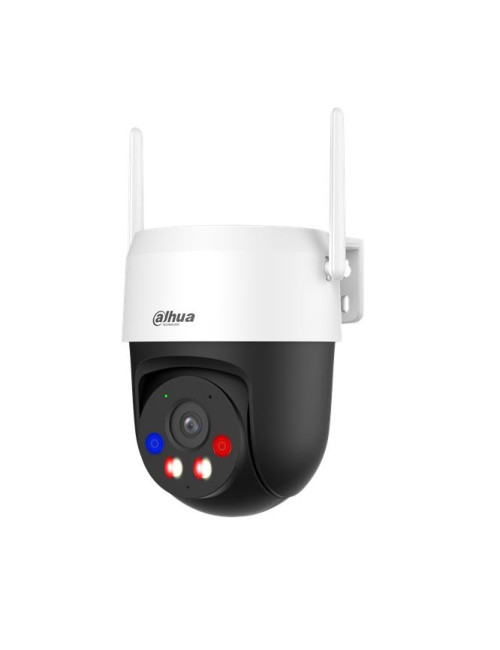

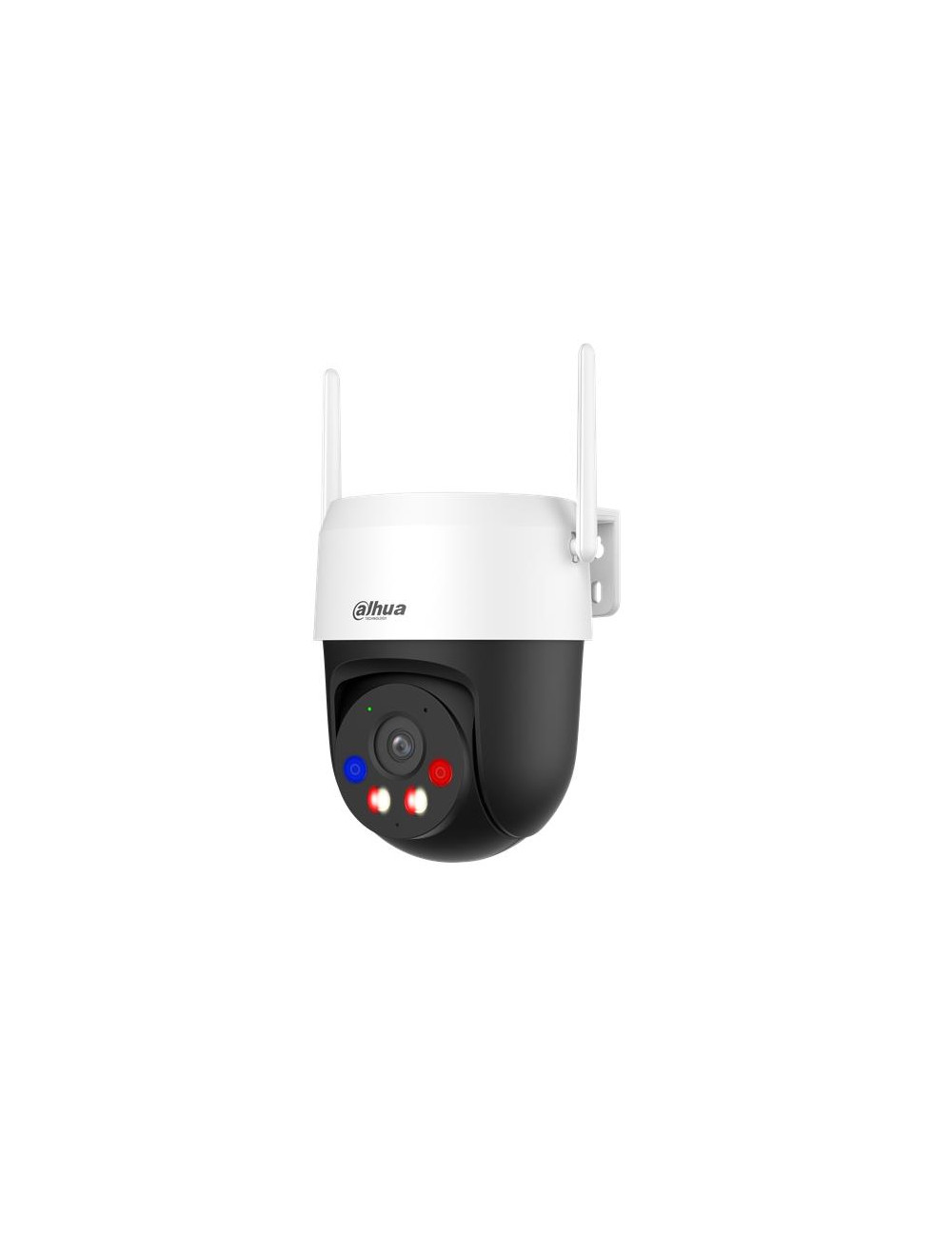

3MP Outdoor Fixed-focal Wi-Fi Pan & Tilt Network Camera
The Active Defense series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. Additionally, it includes smart dual illuminators that not only reduce light pollution, but also intelligently turn on when they are triggered by an event to assist the camera with capturing clear, full-color videos.
Resolution: 3MP 2304 × 1296
Illumination Distance: 30 m (IR, white)
Focal Length/ Field of View: 4.0 mm fixed / 83°
Human detection, Vehicle Detection, Built-in MIC, Built-in Speaker
Micro SD card support, H.265, IP66
Prekė detaliau
Charakteristikos
- Resolution
- 3 Mega Pixel
- Microphone
- Built-in
- Speakers
- Yes
- Garantija
- 36
- Category Code
- NCI
- Vendor Homepage
- www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/NEW-Channel/Outdoor-Camera/Picoo-Series/P3AS-PV
- Input/Output connectors (RJ45)
- 1
- Dimensions
- 125.4 mm 110 mm 140.3 mm
- Model name
- P3AS-PV
- Focal Length
- 3.6 - 4mm
- Wireless connections
- WLAN
- Power supply requirements
- 12 VDC ( 30%)
- Operating temperature range
- 30 C to +55 C
- Units per Shipping Box
- 1
- Product Net Weight
- 0.4 kg
- Unit Calculated Weight
- 0.762 kg
- Unit Calculated Volume
- 0.004626 cubm
- Supports card capacities up to
- 256GB
- Sensor size
- 1/2.8"
- IR Illumination
- Yes
- Camera design
- Dome
- Environment
- Outdoor
