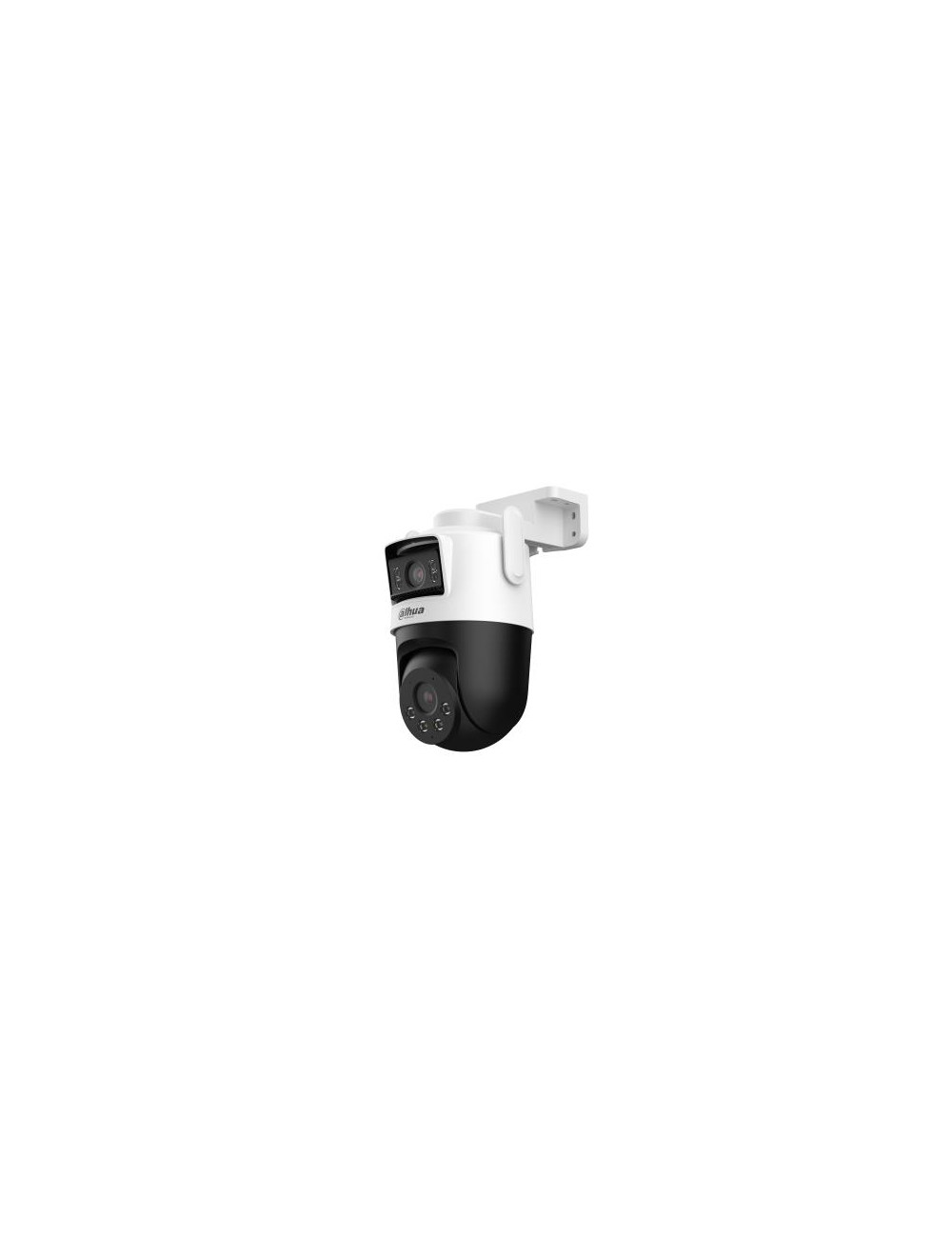

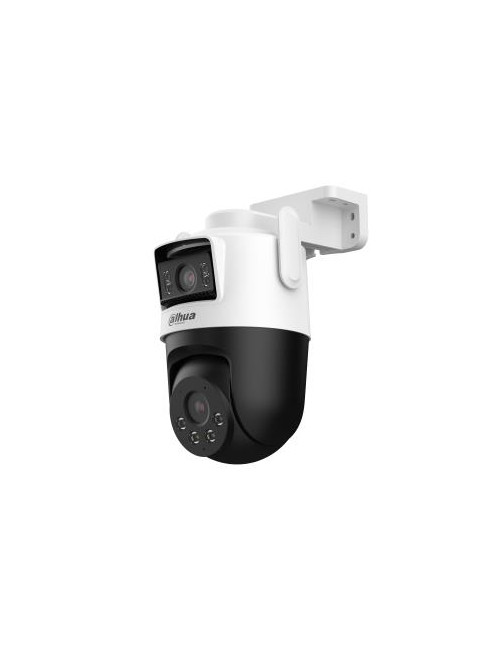

P3D-3F-PV
3+3MP Outdoor Wi-Fi Dual-Lens Pan & Tilt Camera, for outdoor or indoor use.
The Picoo Dual Series, which is under the Dahua Wireless series, consists of cameras equipped with both fixed lens and PT lens. This unique combination allows for simultaneous live monitoring of two areas, providing coverage from multiple angles. Leveraging its dual lenses, the camera performs smart detection using advanced functions like AI human and vehicle detection, effectively minimizing false alarms. Additionally, with the assistance of the PT lens, the camera has the capability to automatically track moving targets. The camera also triggers sound and light alarms upon detecting an intrusion, promptly sending notifications to the mobile client to ensure you remain up to date regardless of your location. These cameras are widely utilized in small-scale scenes such as shops and restaurants.
Field of view: 95°(Fixed) + 53°(PT), IR / white LED illumination distance: up to 50 m, power supply and mounting accessories included
Prekė detaliau
Charakteristikos
- Resolution
- 3 Mega Pixel
- Microphone
- Built-in
- Garantija
- 36
- Category Code
- NCI
- Unit Box Height
- 0.23
- Unit Box Length
- 0.185
- Unit Box Width
- 0.135
- Vendor Homepage
- https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/NEW-Channel/Outdoor-Camera/Picoo-Series/P3D-3F-PV
- Input/Output connectors (RJ45)
- 1
- Included Accessories
- power supply
- Dimensions
- 159.4 mm 119.1 mm 210 mm
- Focal Length
- 4.1 - 12mm
- MODEL
- P3D-3F-PV-0280B/0600B
- Power Options
- 12V
- Wireless connections
- Bluetooth/WiFi/WLAN
- Input/Output connectors (MicroSD Card Slot)
- 1
- Power supply requirements
- Basic: 2.3 W/ Max.: 10 W (pulling stream+ IR + siren and light active deterrence)
- Operating temperature range
- 20 C to +50 C
- Units per Shipping Box
- 1
- Product Net Weight
- 0.585 kg
- Unit Calculated Weight
- 0.96 kg
- Unit Calculated Volume
- 0.005744 cubm
- Supports card capacities up to
- 256GB
- Sensor size
- 1/2.8" CMOS
- IR Illumination
- Yes
- Camera design
- Dome
