IP kamera 4MP AI, 3D, H.265, 2 objektyvai 2.0mm ir 2.8mm. 108 , 25fps

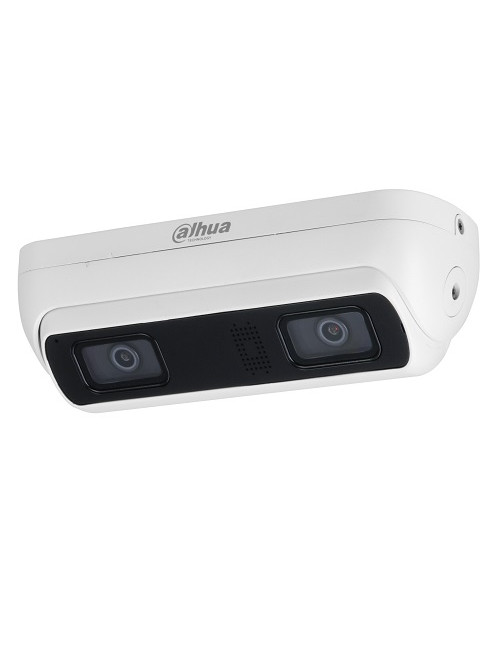

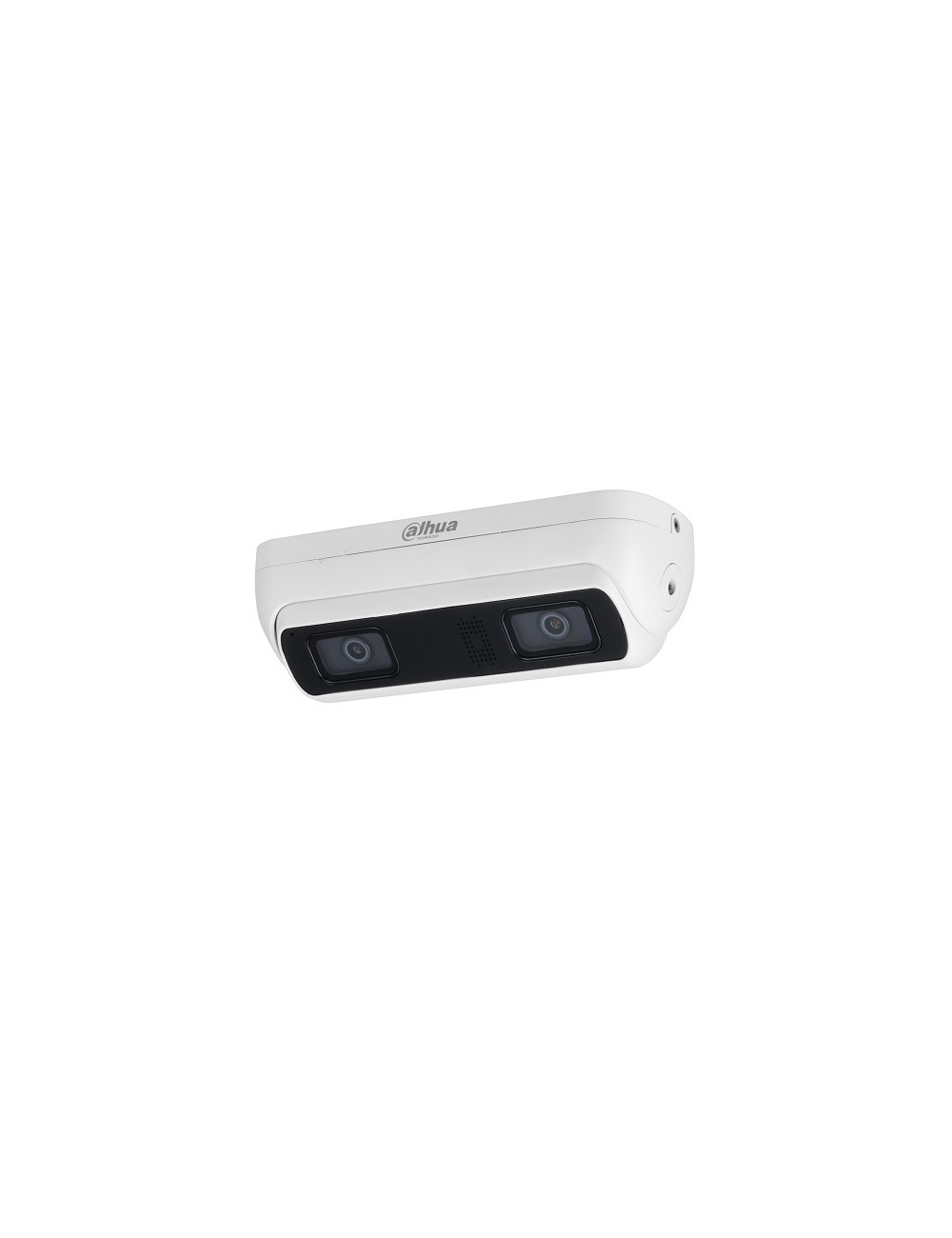

4MP WizMind Dual-Lens Stereo Analysis Network Camera IPC-HDW8441X-BV-3D

Features:

• 4-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
• Outputs max
• 4 MP (2688 x 1520)@25/30 fps.
• Built-in GPU chips, binocular stereo vision and deep learning algorithm, which can improve the detection accuracy.
• Intelligent functions: Stereo analysis and IVS.
• Stereo analysis: Crossing warning line, warning area intrusion, running detection, people approaching detection, violence detection, fall detection, abnormal number of people detection and people stay detection.
• Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
• Built-in IR LED, and the max. illumination distance is 20 m.
• Sound Management: With its built-in Mic and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
• Height self-adaptation and height filtering.
• Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 512 G Micro SD card; Built in Mic and speaker, support two-way talk.
• 12 VDC/PoE/ePoE power supply, 12 VDC power output, max. current 165 mA, and peak current 700 mA, easy for installation.
• IP67 and IK10 protection.

Specifications:

Image Sensor: 1/2.8" CMOS
Max. Resolution: 2688 (H) x 1520 (V)
ROM: 4 GB
RAM: 2 GB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination:
2.0 mm: 0.005 lux@F2.0 (Color,30 IRE), 0.0005 lux@F2.0 (B/W,30 IRE), 0 lux (Illuminator on)
2.8 mm: 0.005 lux@F1.6(Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N Ratio: >56 dB
Illumination Distance: Up to 20 m (65.62 ft) (IR)
Illuminator On/Off Control: Auto;Manual
Illuminator Number: 1 (IR LED)
Angle Adjustment: Tilt: -10° to 70°
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm;2.0 mm
Max. Aperture: 2.0 mm: F2.0; 2.8 mm: F1.6
Field of View:
2.0 mm: H: 108°; V: 74°; D: 117°
2.8 mm: H: 87°; V: 55°; D: 97°
Iris Control: Fixed
Close Focus Distance: 2.0 mm: 0.4 m (1.31 ft); 2.8 mm: 1.1 m (3.61 ft)
DORI Distance:
2.0 mm: Detect 44.8 m, Observe 17.9 m, Recognize 9.0 m, Identify 4.5 m
2.8 mm: Detect 63.6 m, Observe 25.4 m, Recognize 12.7 m, Identify 6.4 m
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event: IVS Abandoned object; missing object
Intelligence:IVS (Perimeter Protection): Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection; people gathering; loitering detection; privacy protection
Stereo Analysis: Crossing warning line; warning area intrusion; running detection (only supported by inclined mount cameras); people approaching detection; violence detection (including fighting and smashing); fall detection; abnormal number of people detection; people stay detection; privacy protection; height filtering
Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec: Smart H.265+; Smart H.264+
AI Coding: AI H.265; AI H.264
Video Frame Rate:
Main stream: 2688 x 1520@(1–25/30 fps)
sub stream: 1920 x 1080@(1–25/30 fps)
third stream: 1920 x 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability: 3 streams
Resolution: 4M (2688 x 1520/2560 x 1440); 3M (2048 x 1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
Bit Rate Control: ABR;CBR;VBR
Video Bit Rate: H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: DWDR
White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control: Auto
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Image Stabilization: Electronic Image Stabilization (EIS)
Smart Illumination: Yes
Defog: Yes
Privacy Masking: 8 areas
Built-in MIC: Yes, built-in Mic
Built-in Speaker: Yes, built-in speaker
Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723
Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; voltage detection; illegal access; motion detection; video tampering; scene changing; audio detection; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; crossing warning line; warning area intrusion; running detection; abnormal number of people detection; fall detection; people approaching detection; violence detection; people stay detection
Network Port: RJ-45 (10/100/1000 Base-T)
SDK and API: Yes
Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; auto registration
Interoperability: ONVIF (Profile S; Profile G; Profile T); P2P; CGI
User/Host: 20
Storage: FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser: IE: IE 9 and later; Chrome: Chrome 41 and later; Firefox: Firefox 50 and later; Safari: Safari 10 and later
Management Software: Smart PSS Lite; DSS; DMSS
Mobile Client: iOS;Android
Cyber Security: Configuration encryption;Trusted execution;Session security;Digest;Security logs;WSSE;Account lockout;Security warning;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of x.509 certification
Certifications: CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port: RS-485, 1 (baud rate range: 1200 bps–115200 bps)
Audio Input: 2 channels (RCA port)
Audio Output: 1 channel (RCA port)
Alarm Input: 2 channels in: wet contact, 5 mA 3–5 VDC
Alarm Output: 2 channels out: wet contact, 300 mA 12VDC
Analog Output: 1 channel (CVBS output: BNC)
Power Output: 12 VDC power output, max. current 165 mA, peak current 700 mA
Power Supply: 12 VDC/PoE (802.3af)/ePoE
Power Consumption: Basic: 5.9 W (12 VDC), 7 W (PoE);
Max. (intelligence on + IR intensity + turn on the speaker+ power output): 10.8 W (12 VDC), 12.9 W (PoE)
Operating Temperature: -40 °C to +60 °C (-40 °F to +140 °F)
Operating Humidity: <95% (RH), non-condensing
Storage Temperature: -40 °C to +60 °C (-40 °F to +140 °F)
Storage Humidity: <95% (RH), non-condensing
Protection: IP67; IK10.
Casing Material: Metal
Product Dimensions: 204.0 mm x 78.0 mm x 61.6 mm (8.03" x 3.07" x 2.43")(L x W x H).
Net Weight: 0.82 kg.
Gross Weight: 1.14 kg.
