Prekė detaliau
Charakteristikos

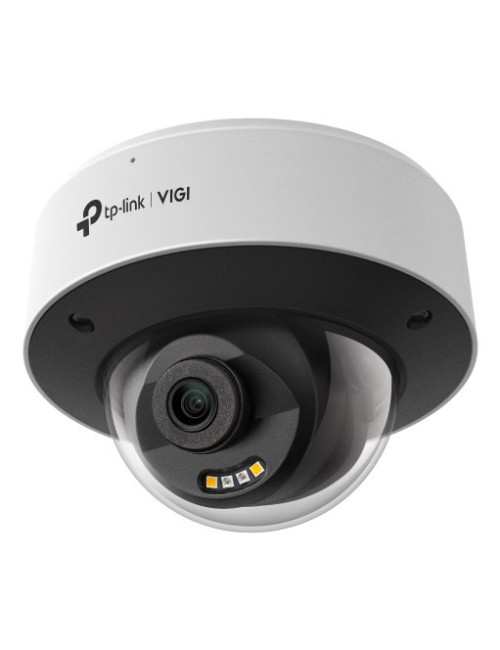

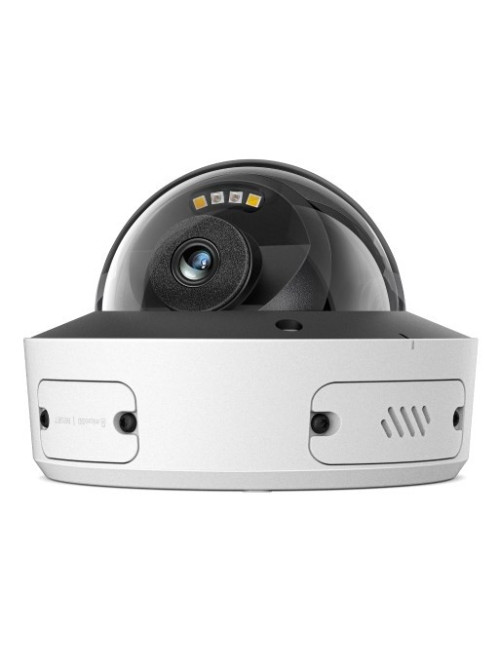

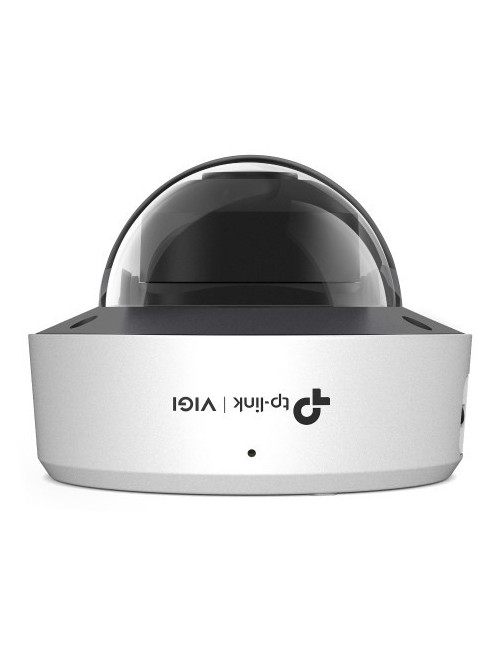

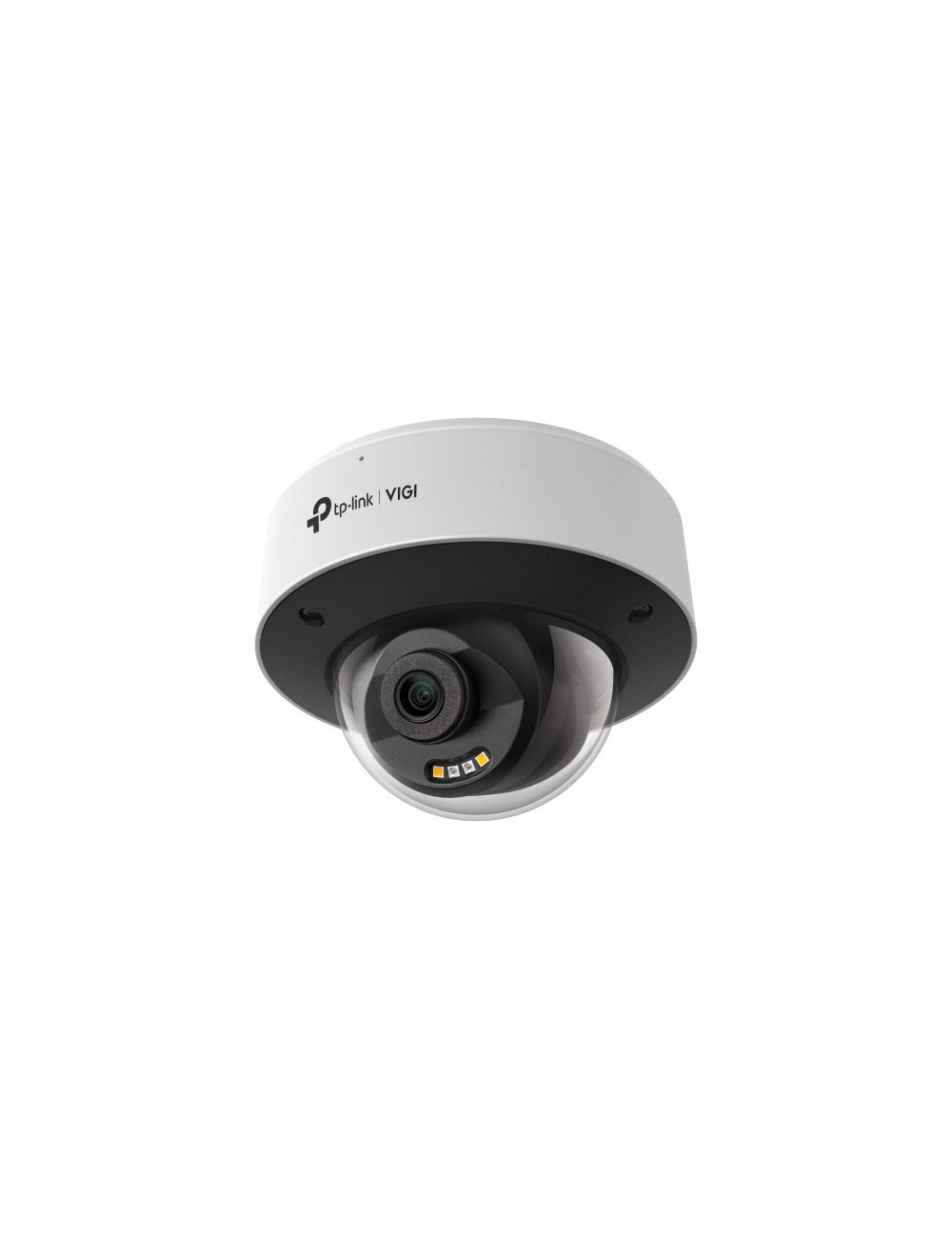

- Type
- IP security camera
- Width
- 122 mm
- Height
- 89 mm
- Depth
- 122 mm
- Connectivity technology
- Wired
- Weight
- 620 g
- Power source type
- DC, PoE
- Storage relative humidity (H-H)
- 0 - 95%
- Manual
- Yes
- Operating temperature (T-T)
- -30 - 60 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -40 - 60 °C
- Mounting type
- Ceiling
- Form factor
- Dome
- Built-in microphone
- Yes
- Bluetooth
- No
- Sample rate
- 8 kHz
- Bit rate
- Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
- Protection features
- Waterproof
- Sensor type
- CMOS
- Wi-Fi
- No
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 512 GB
- Audio system
- 2-way
- Audio formats supported
- G.711 A-law
- Maximum operating distance
- 80 m
- Maximum resolution
- 2688 x 1520 pixels
- Built-in speaker(s)
- Yes
- Placement supported
- Outdoor
- Ethernet LAN (RJ-45) ports
- 1
- Audio output channels
- 1.0 channels
- DC-in jack
- Yes
- Housing material
- Metal
- Networking standards
- IEEE 802.3at
- Ethernet LAN
- Yes
- Supported graphics resolutions
- 2688 x 1520
- International Protection (IP) code
- IP67
- Web-based management
- Yes
- Supported network protocols
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
- Reset button
- Yes
- Password protection
- Yes
- Product colour
- White
- Tilt angle range
- 0 - 75°
- Fixed focal length
- 4 mm
- Web browser
- Yes
- Number of microphones
- 1
- Video recording
- Yes
- LED type
- IR/White
- Night vision
- Yes
- Total megapixels
- 4 MP
- Motion sensor
- Yes
- Optical sensor size
- 25.4 / 2.7 mm (1 / 2.7")
- Minimum illumination
- 0 lx
- Dynamic range
- 120 dB
- Lens viewing angle, diagonal
- 105.4°
- Video compression formats
- H.264
- DC output voltage
- 12
- Video motion detection
- Yes
- Number of cameras
- 1
- Camera pan control
- Yes
- Camera tilt control
- Yes
- Detection distance
- 80 m
- Day/night mode
- Yes
- Infrared (IR) cut-off filter
- Yes
- Remote viewing
- Yes
- Lens viewing angle, vertical
- 46°
- Digital Wide Dynamic Range (DWDR)
- Yes
- Maximum aperture number
- 1.6
- Lens viewing angle, horizontal
- 88°
- Built-in siren
- Yes
- Alert notification type
- Push notification
- Wide Dynamic Range (WDR)
- Yes
- Progressive scan
- Yes
- Mirror
- Yes
- Back Light Compensation (BLC)
- Yes
- Weatherproof
- Yes
- IP address filtering
- Yes
- Intelligent Video Surveillance (IVS) system features
- Abnormal sound detection
- Camera shutter speed
- 1/3 to 1/10000
- Bit rate control
- Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Highlight Compensation (HLC)
- Yes
- Live view
- Yes
- Cloud-managed
- Yes
- Power consumption (Power over Ethernet (PoE))
- 12.52 W
- HTTPS encryption
- Yes
- Image quality adjustment
- Saturation
- IK code
- IK10
- Digest authentication
- Yes
- Audio input channels
- 1.0 channels
- Detect distance
- 80 m
- Observe distance
- 33 m
- Recognize distance
- 16 m
- Identify distance
- 8 m
- Human and vehicle targets classification
- Yes
- Bit rate range
- 0 - 64 Kbit/s
