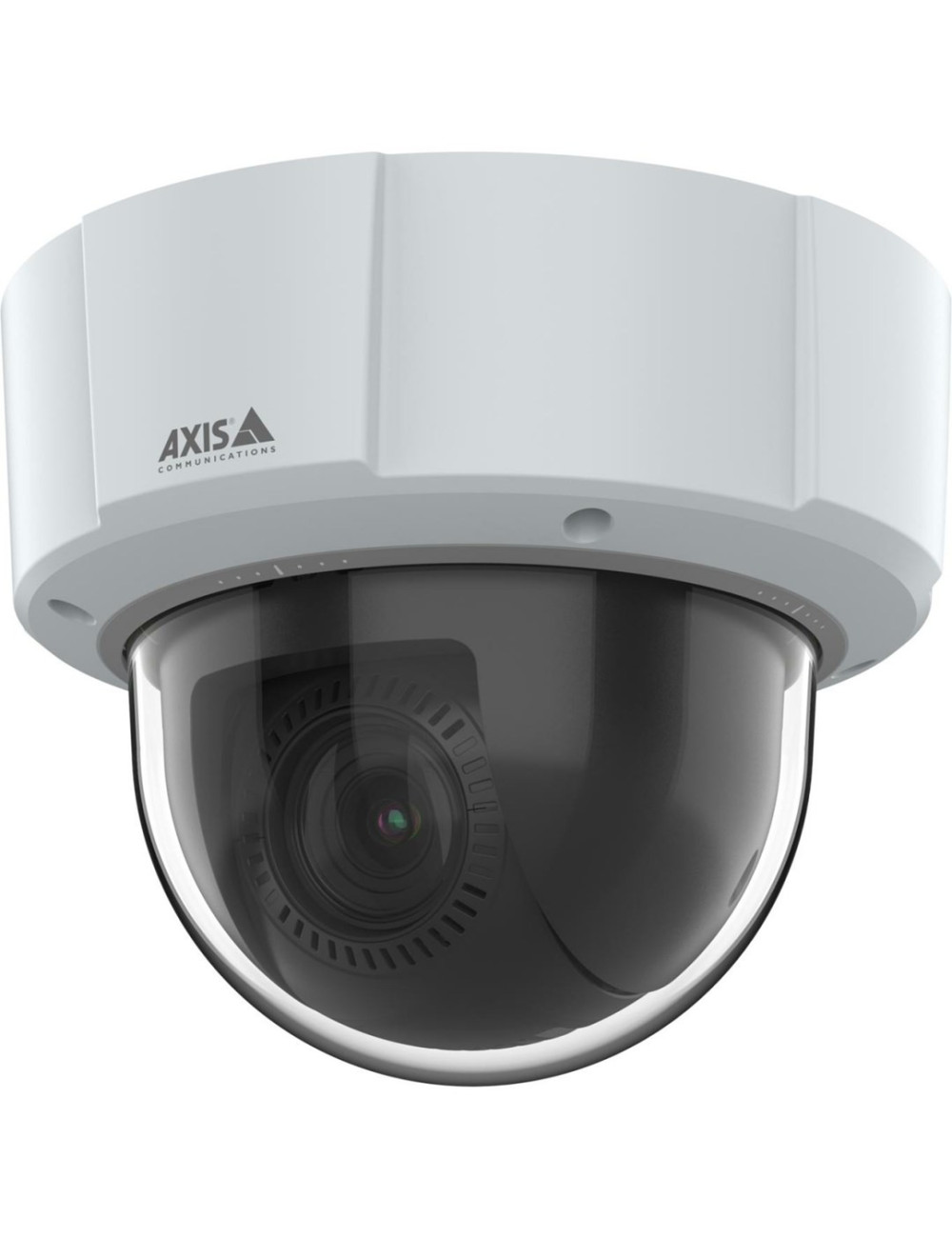

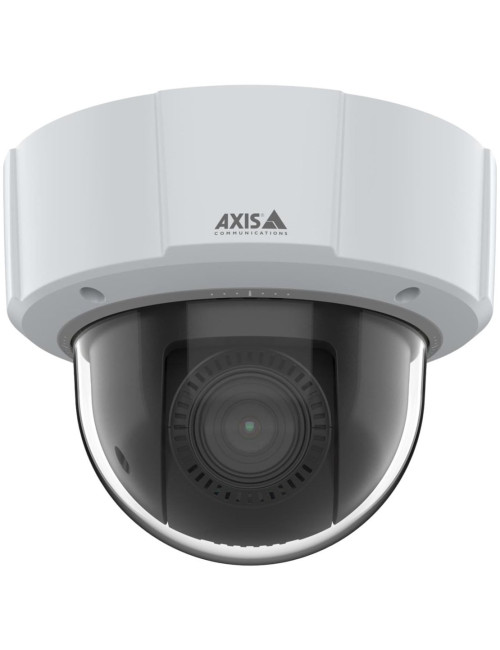

Axis M5526-E Network Surveillance Camera

Prekė detaliau

Charakteristikos

Type

IP security camera

Width

165 mm

Height

150 mm

Depth

165 mm

Connectivity technology

Wired

Weight

1 kg

Power source type

PoE

Storage relative humidity (H-H)

5 - 95%

Manual

Yes

Operating temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

15 - 100%

Storage temperature (T-T)

-40 - 65 °C

Mounting type

Ceiling

Form factor

Dome

Sample rate

48 kHz

Noise reduction

Yes

Microphone in

Yes

Sensor type

CMOS

Compatible memory cards

microSDHC

Audio system

2-way

Audio formats supported

G.711

Signal-to-Noise Ratio (SNR)

55 dB

Power consumption

3.8 mA

Power consumption (max)

11.7 W

Power consumption (typical)

4.2 W

Maximum resolution

2688 x 1512 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Housing material

Plastic

Networking standards

IEEE 802.3af

Security algorithms

PEAP

Ethernet LAN

Yes

Supported graphics resolutions

160 x 120

Zoom capability

Yes

International Protection (IP) code

IP66

Flash memory

8192 MB

Digital zoom

12x

Auto focus

Yes

Ethernet interface type

Fast Ethernet

Video formats supported

H.265

Optical Zoom

10x

Quality of Service (QoS) support

Yes

Frame Rate

60 fps

Product colour

Black

Tilt angle range

0 - 90°

Doesn't contain

PVC/BFR

Focal length range

4.7 - 47 mm

Total megapixels

4 MP

PTZ control

Yes

Optical sensor size

25.4 / 3 mm (1 / 3")

Minimum illumination

0.01 lx

Pan range

0 - 360°

Video motion detection

Yes

Number of cameras

1

Camera pan control

Yes

Camera tilt control

Yes

Number of lenses

1

Day/night mode

Yes

Preset points

Yes

Infrared (IR) cut-off filter

Yes

Audio system full duplex

Yes

Lens viewing angle, vertical

35 - 3.67°

Noise reduction technology

2D noise reduction, 3D noise reduction

Maximum aperture number

3

Lens viewing angle, horizontal

59.1 - 6.5°

Number of sensors

1

Alert notification type

E-mail

Audio detection

Yes

Wide Dynamic Range (WDR)

Yes

Video streaming

Yes

Active tampering alarm

Yes

Terminal block port

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

ROM capacity

1024 MB

Camera shutter speed

1/27000 - 0.2 s

Gain control type

Auto

Privacy masking

Yes

Power consumption (Power over Ethernet (PoE))

12.95 W

Image quality adjustment

Brightness

IK code

IK09

Streaming method

Multicast

Identify distance (wide)

10 m

Recognize distance (wide)

19 m

Pan speed

150 °/sec

Observe distance (wide)

38 m

Detect distance (wide)

96 m

Identify distance (tele)

93 m

Pixel counter

Yes

Human and vehicle targets classification

Yes

Tilt speed

150 °/sec

Minimum aperture number

1.6

Recognize distance (tele)

186 m

Detect distance (tele)

938 m

Observe distance (tele)

373 m

Text caption overlay

Yes

Compliance certificates

REACH

Camera pixel size

1.998 µm

License plate recognition

Yes
