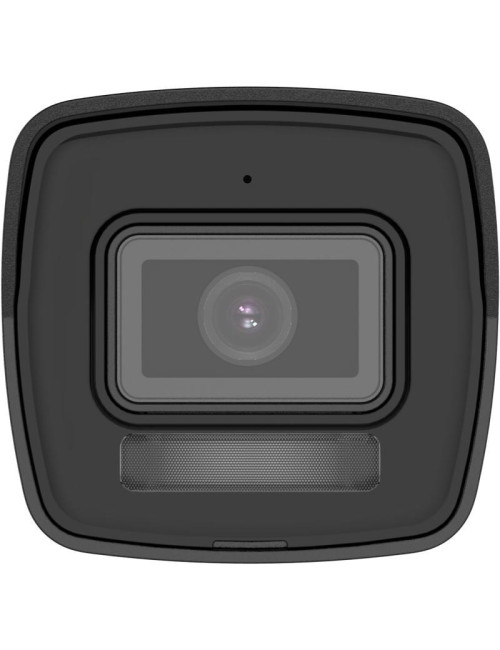

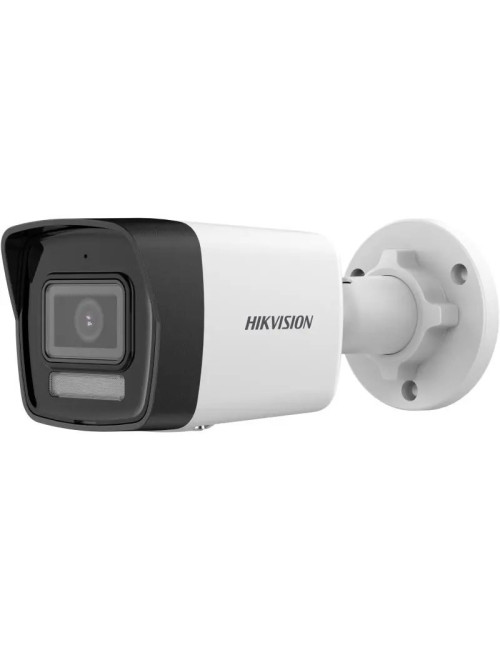

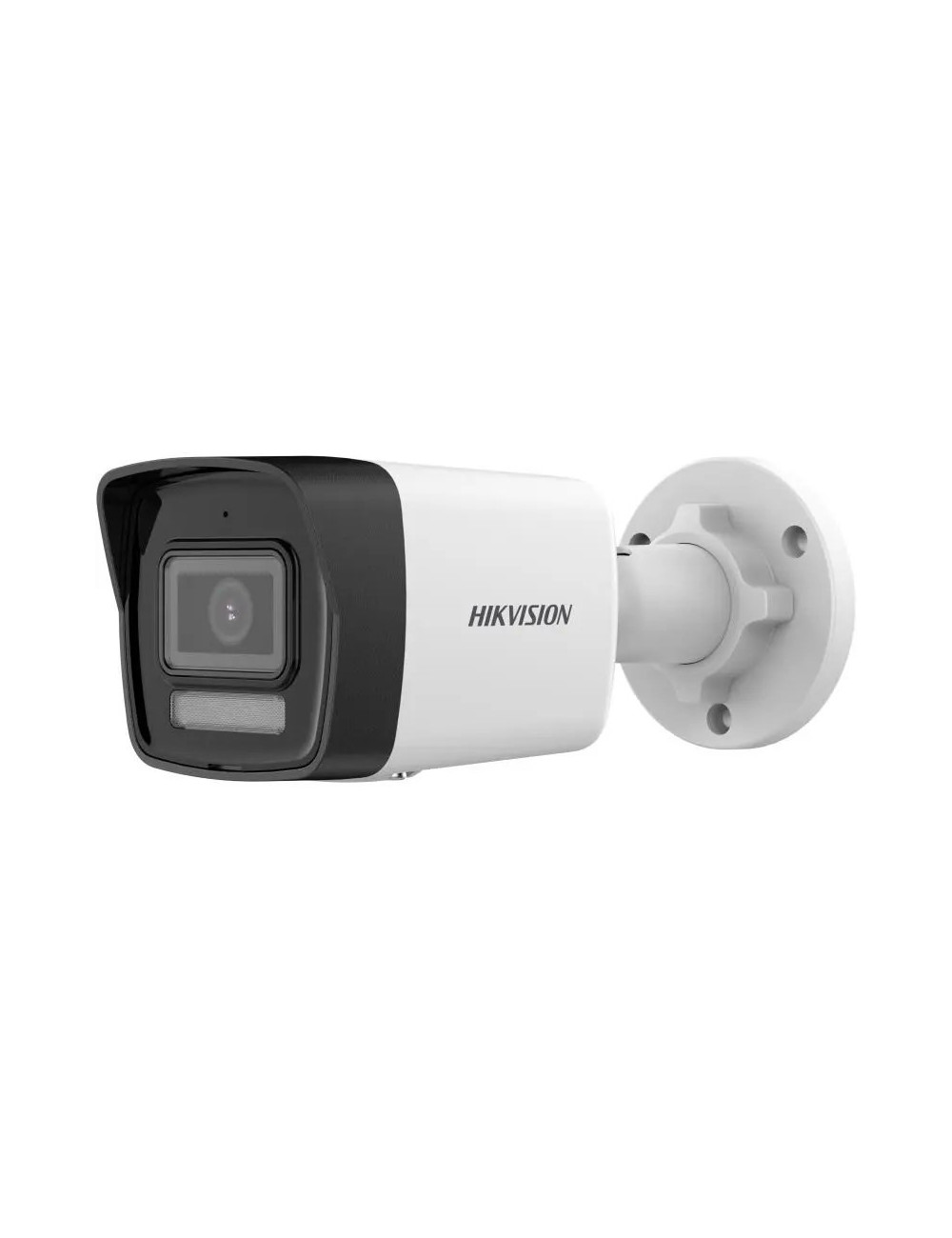

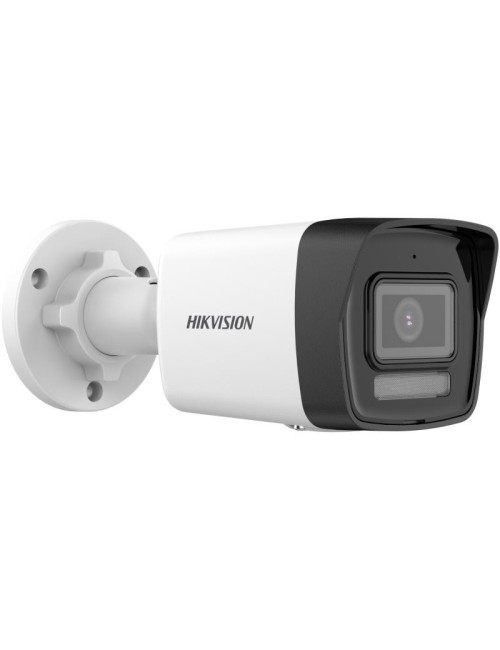

DS-2CD1063G2-LIU(2.8mm) IP Camera

Prekė detaliau

Kodas WLONONWCRFGSG

Yra sandėlyje 200 Prekės

Charakteristikos

Type

IP security camera

Width

66 mm

Height

69.1 mm

Connectivity technology

Wired

Weight

285 g

Package depth

121 mm

Package height

118 mm

Package width

216 mm

Package weight

481 g

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Bullet

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 16 Mbps

Protection features

Waterproof

Length

170.8 mm

Sensor type

CMOS

Wi-Fi

No

Audio formats supported

G.711

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

5 W

Maximum resolution

3200 x 1800 pixels

Placement supported

Indoor & outdoor

Ethernet LAN (RJ-45) ports

1

Number of languages

2

Housing material

Plastic

Ethernet LAN

Yes

Supported graphics resolutions

1280 x 720 (HD 720)

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Password protection

Yes

Languages support

Ukrainian

Product colour

White

Tilt angle range

0 - 90°

Sustainability compliance

Yes

Fixed focal length

2.8 mm

Night vision

Yes

Total megapixels

6 MP

Fixed focus

Yes

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Minimum illumination

0 lx

Pan range

0 - 360°

Dynamic range

120 dB

Lens viewing angle, diagonal

127°

Video compression formats

H.264+

Angle of rotation

360°

DC output current

0.41 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

30 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

55°

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.6

Lens viewing angle, horizontal

105°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Camera shutter speed

1 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

6.5 W

Image quality adjustment

Saturation

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Built-in light

Yes

Detect distance

76 m

Observe distance

30 m

Recognize distance

15 m

Identify distance

7 m

Client interoperability

iVMS-4200, Hik-Connect

Bit rate range

16 - 160 Kbit/s

Compliance certificates

RoHS

Number of Privacy masking areas

4

Sample rates

8 - 16 kHz

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Audit log

Yes
