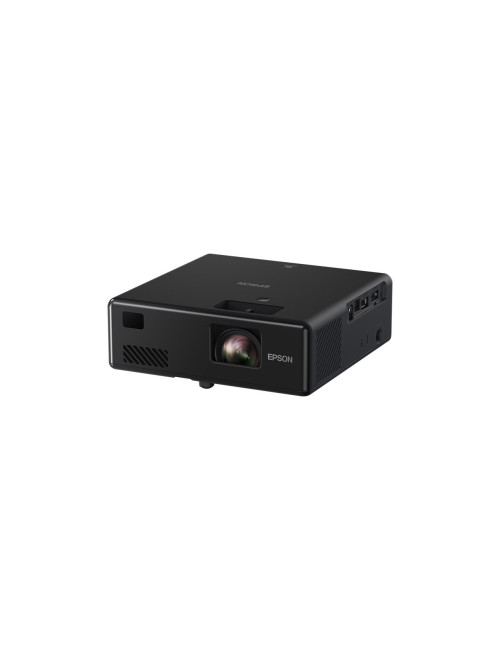

Product Details
Data sheet

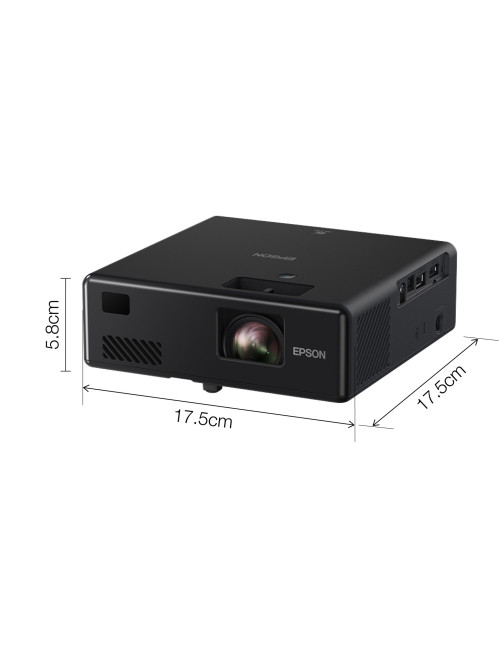

- Width
- 175 mm
- Height
- 65 mm
- Depth
- 175 mm
- Weight
- 1.2 kg

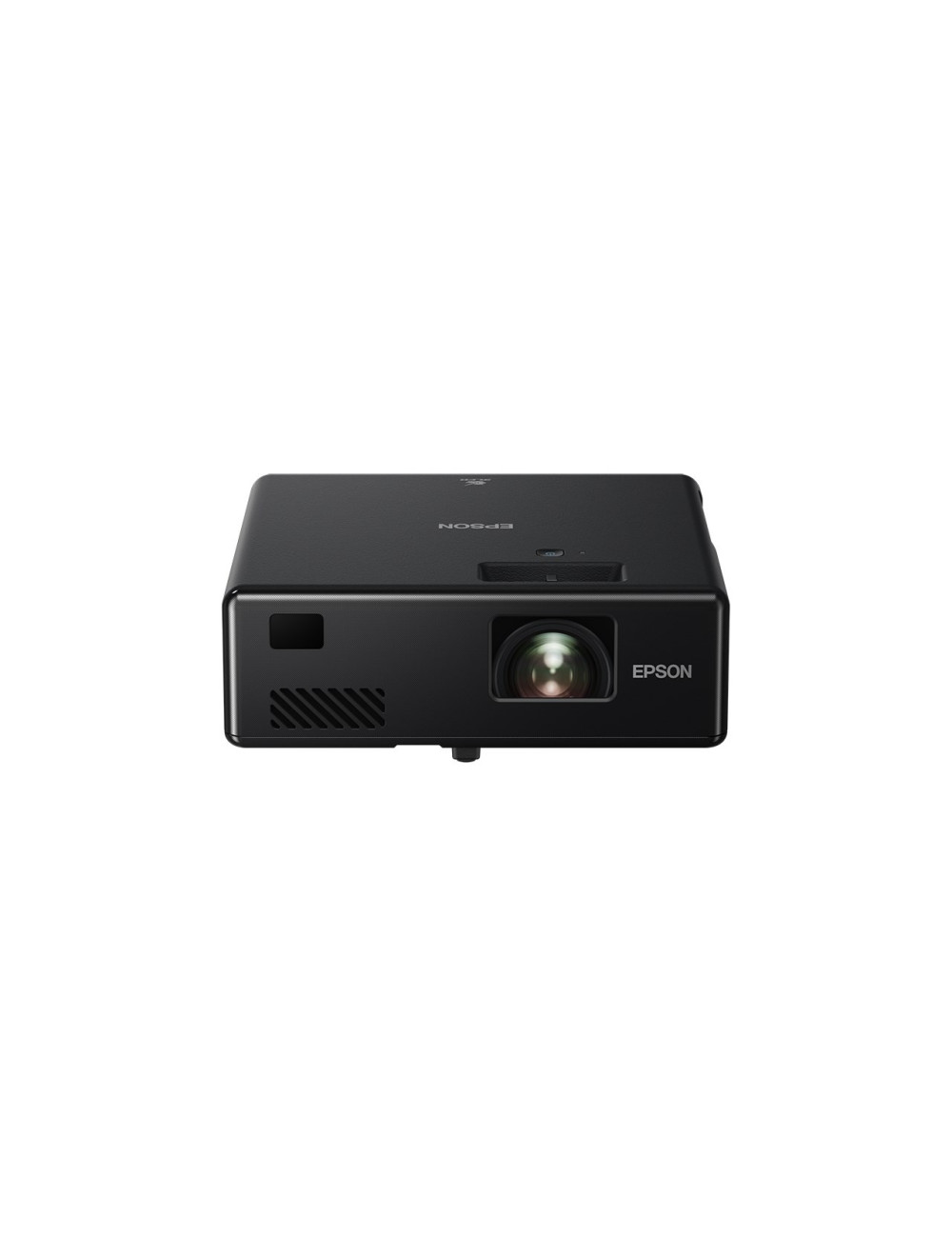

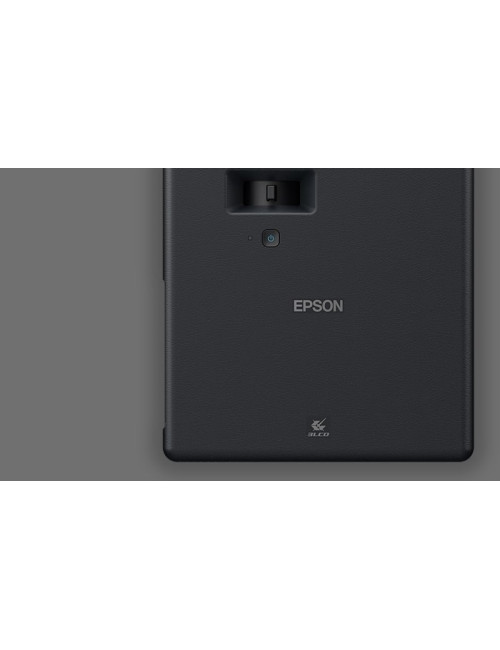

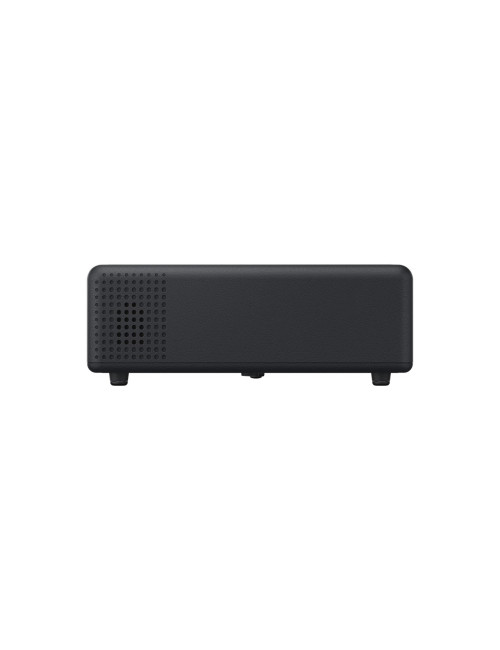

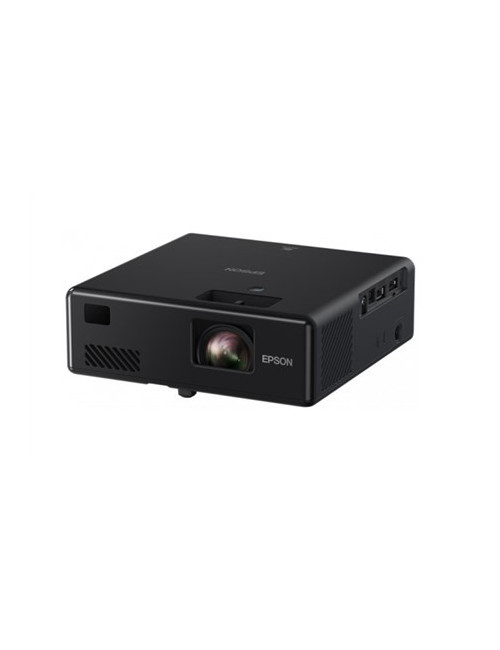

- Product type

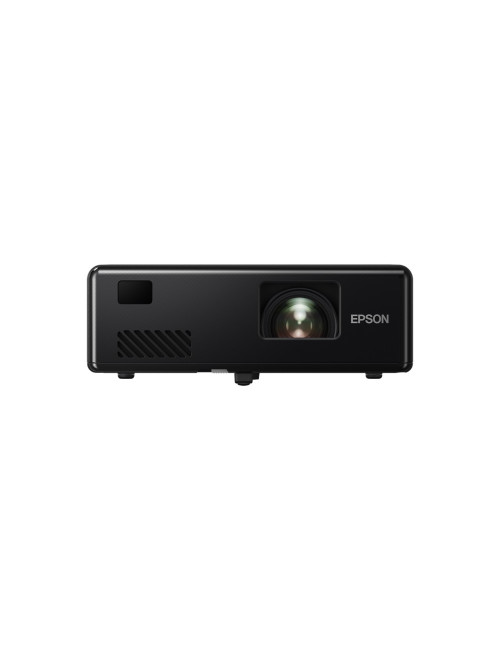

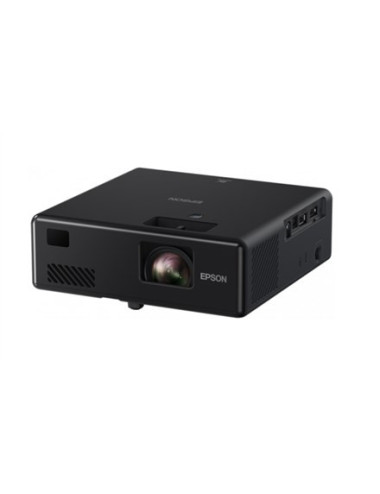

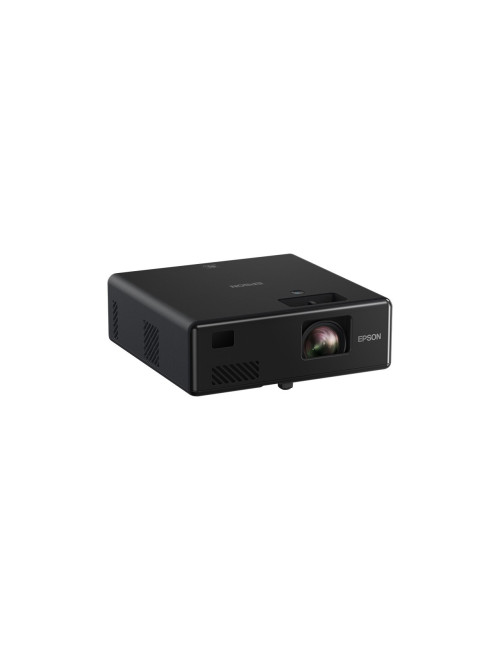

- Short throw projector
- Package depth
- 242 mm
- Package height
- 215 mm
- Package width
- 250 mm
- Package weight
- 2.8 kg
- Batteries included
- Yes
- Cables included
- AC
- Storage relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 5 - 35 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage temperature (T-T)
- -10 - 60 °C
- Power source
- AC
- Quick start guide
- Yes

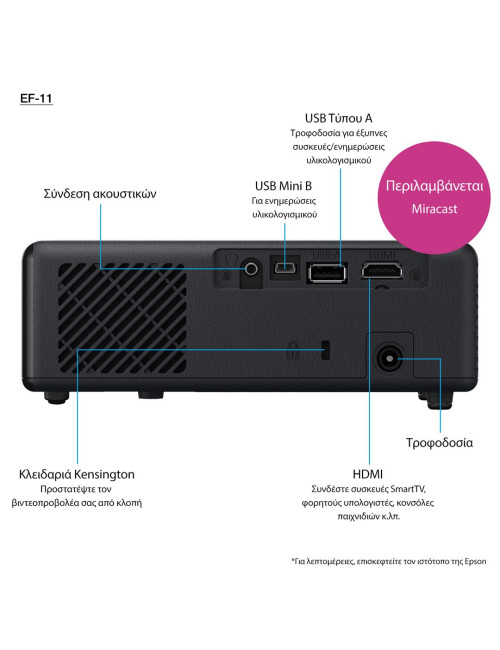

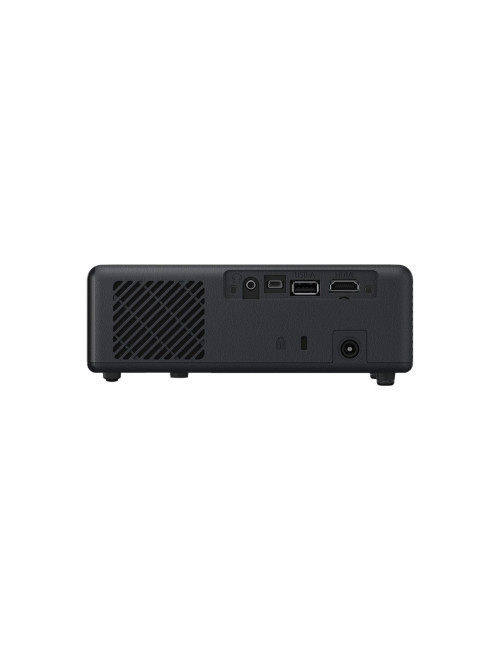

- HDMI ports quantity
- 1
- Power consumption (typical)
- 102 W
- Contrast ratio (typical)
- 2500000:1
- Native aspect ratio
- 16:9
- Built-in speaker(s)
- Yes
- Cable lock slot
- Yes
- Vertical scan range
- 192 - 240 Hz
- RMS rated power
- 2 W
- Power consumption (standby)
- 0.5 W
- HDMI version
- 1.4
- 3D
- No
- FULL HD
- YES
- Quantity per pack
- 1 pc(s)
- Placement
- Desktop, Floor
- AC input voltage
- 100-240 V
- Cable lock slot type
- Kensington
- Keystone correction, vertical
- -34 - 34°
- Throw ratio
- 1.00 - 1.00:1
- Noise level (economic mode)
- 22 dB
- Focus
- Manual
- Screen size compatibility
- 762 - 3810 mm (30 - 150")
- White light output
- 1000 ANSI lumens
- Projector native resolution
- 1080p (1920x1080)
- Projection distance
- 0 - 1.33 m
- Projection technology
- 3LCD
- Number of colours
- 16.78 million colours
- Keystone correction, horizontal
- -40 - 40°
- Colour light output
- 1000 ANSI lumens
- Video processing
- 10 bit
- AC input frequency
- 50 - 60 Hz
- Projector brightness (economic mode)
- 500 ANSI lumens
- Projector brightness
- 1000 ANSI lumens
- Power consumption (economy mode)
- 73 W
- Light Source Type
- Laser
- Noise Level
- 27 dB
- Supported aspect ratios
- 16:9
- Matrix size
- 1.57 cm (0.62")
- Product colour
- Black
- Harmonized System (HS) code
- 85286200
- Remote control included
- Yes
- Products per pallet
- 108 pc(s)
- Pallet gross weight
- 0 g
- Heat dissipation
- 347 BTU/h
- Video colour modes
- Dynamic
- Fixed focal length
- 13.9 mm
- Audio (L/R) out
- 1
- Products per pallet (UK)
- 144 pc(s)
- Miracast
- Yes
- Pallet weight (UK)
- 0 g
